Plastic Jdf45 Soft PVC Garden Fiber Braided Reinforced Pipe Flexible Water Hose/Corrugated Pipe/Tube/Conduit Cable/Corrugated Extrusion Making Machine Price

Product Description

Product Description

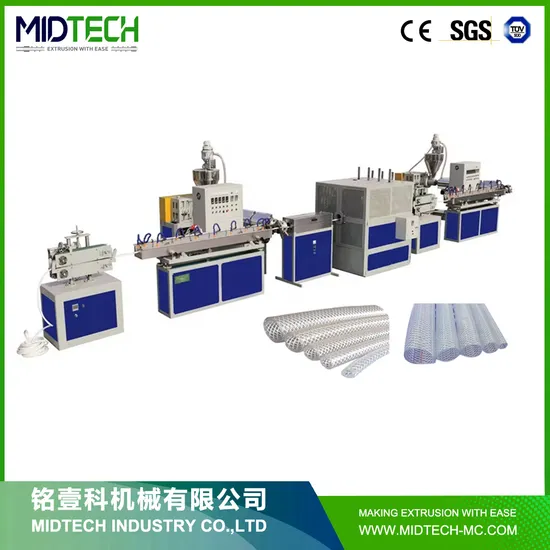

Soft PVC Fiber Reinforced Pipe Production Line
Detailed Photos
Introduction:
PVC Fiber Reinforced Soft Pipe Production Line, which is mainly used to convey pressure gas or corrosive gas and liquid. Suitable for conveying the pressure or corrosive gas, liquid. Widely used in the machinery, coal mineral, petroleum. Chemical industry, agriculture irrigation, construction, civil (solar water heater, gas cylinder)etc.
Equipment List:
1. Extruder:
2. Mould
3. Wire Winding machine
4. Water Cooling Tank
5. Oven
6. Haul-off Machine
7. Cutting Machine
8. Pipe Winding Machine
High speed kneading machine (mixing materials)---mould---extruder 1(innermost layer PVC pipe)------cooling tank 1---hauling machine 1 ---winding machine (fiber line that is the second)---dryer---extruder 2(the most outer PVC pipe )----cooling tank 2---hauling machine 2---coiling pipe bender ----package.

Equipment warranty
1. About the equipment, Middle tech promised the good quality of 12 month.
2. during the warranty, no purposely and artificially damage change the damaged part, we will free
maintenance and technical services.
3. Over 12 months, Buyer's needs to pay the producing cost of the worn part, and life-long supply the part of equipment and freely device
If you want more detail about this pipe extrusion line, please contact us Product Parameters

Model	SJ45/30	SJ65/30
PVC Hose Diameter range(mm)	6-16mm	12-50mm
Capacity(kg/h)	20-40	40-80
Installed power(kw)	35	50
Operator	1-2 persons per shift
Material of Hose	PVC Granules + Polyester thread

PVC reinforced pipe Configuration

Item	Description	Data
1	Single Screw Extruder	2 sets
	Screw and Barrel Material	38CrMoAlA
	Treatment of Screw and Barrel Surface	Nitriding
	Heating Mode of Screw Barrel	Cast-aluminium Heating Circles
	Cooling Mode of Barrel	Air Blower
	Main Motor Power Speed Adjusting	ABB Frequency Inverter
	Gearbox Reducer	Hardening Gear Surface, Low Noise
2	Die Head	1 set or According to Customer's Need
3	Water Cooling Tanks	2 sets
	Tank Material	Excellent Stainless Steel
	Tank Length	2000-3000mm
	Tank Thickness	3mm
	Water Pump	2 sets
4	Fiber Winding Machine	1 set
	Motor	2.2KW
	Speed Adjusting Mode	ABB Inverter
5	Hauling off Machine	2 sets
	Motor Power	1.5kw*2
	No.of Belt	2 *2 sets
	Speed Control	A Inverter
6	Twin Position Coiler	1 set
7	Main Electrical Components	SIEMENS ,Omron, ABB, Schneider etc.
