Product Description
Product Description
Automatic Piston Pump High Viscosity Viscous Tomato Sauce Paste Bottle Filling Machine
Product Description
Specifications:
DESCRIPTION:

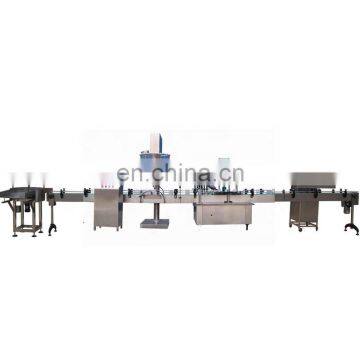

This automatic powder packing line is suitable for all kinds of powder, powder mixture automatic filling .the container is automatically located, filling material and automatic transmission.this liner powder packing filling line can fill powder into bottles , jars filling. Such as milk powder, protein powder, chicken powder, chicken essence, monosodium glutamate, medicine, food additive, etc. This whole powder packing line include rotating table machine, spiral feeder, auto filling machine, capping machine and labeling machine.
We also have rotary automatic powder filling line, if you want to know more information,welcome to connect us freely.
TECHNICAL DATA
Metering Mode
| Directly dosing by auger
|
Filling Weight
| 10 ~ 2000g
|
Filling Accuracy
| ≤ 100g, ≤±1.5%; 100 - 500g, ≤±1%; 500 - 2000g,≤±0.5%
|
Filling Speed
| above 70 bottles/min
|
Power Supply
| 3P /208 - 415V 50/60Hz
|
Total Power
| 4.8KW
|
Air Supply
| 6kg/cm2; 0.2m3/min
|
Total Weight
| 800Kg
|
Overall Dimensions
| 3750×970×2100mm
|
Hopper Volume
| 45L
|
Picture:
1.Rotating table of alignment:
This rotating table machine by control motor speed to make the bottle under the rotating force into the conveyor belt, and compose a part of automatic powder packing line, just need a person put the bottles on the table and it can automatically move to the belt conveyor, this machine is labor saving and high working efficiency. Suitable bottles: 50-5000ml round bottles,square bottles.
Turntable diameter: 1000mm
Power:220V,50HZ,0.25KW
Dimension:1120*820*1150mm
Weight:80kg
2.Automatic auger filler with screw feeding machine
Vibration type screw feeding machine(square hopper)
This machine is suitable for feeding powder, power and grain mixed material.
Characteristic: ---controlled by filler
---there is feed-back switch, easy for clean
---there is vibrator with storehouse, easy to feed
Parp Parameter: rated speed: 0.5-3t/h
Loading height: 1.6m
Dimension: 2300*800*2100mm
storehouse capability: 100-300kg
Power: AC220V/380V, 0.75KW
3. Automatic auger filler:
According to different materials , speed is adjustable
Parameters:
Measuring range: 30-5000 G
Precision grade: Grade 1
Packing: 1000-4500 jars / hour
Dimensions: length * width * height (4000*1200*2100) mm
Power supply: AC380 50HZ • 2.0KW
4. Automatic single head capping machine
It is mainly used for round plastic caps,screw caps capping. And it’s fit for foods,pharmacy,chemical,pesticide and cosmetic fields.
Capping heads: 1head/2heads
Power:1kw Cap diameter: 15-50mm,50-100mm
Bottles diameter:20-130mm Bottle height:50-320mm
Working speed:10-60bottles/min Dimension:150*800*160mm Weight:300kg
5.Vertical round bottle labeling machine:
Vertical labeling machine adopts advanced rolling on labeling, using computer control fiber, synchronous tracking, a bid by the stepper motor or servo motor control, automatic detection and automatic container and label size, location and other advanced features, to ensure accurate labeling, automatic synchronization.
Parameters: Labeling speed: 100-250 bottles / min (related to bottle and label size)
Conveyor speed: 0-23 M / min can be adjusted
Labeling accuracy: + 1mm (excluding packaging and label error)
The paste size: diameter 20- diameter 80mm, height 20mm above
Application of roll diameter: diameter of more than 76mm can be
Application of roll diameter: diameter of 300mm can be the following
Use power: 220V/50Hz 200W External dimensions (L) 1700 x (W) 650mm * (H) 1300mm
Advantages
After Sales Service:
1.All the products have one year guarantee.
2.Providing professional installation instructions and video of troubleshoot.
3.We supply after sales service for 24 hours, 7 days per week. Customer can contact us any time.
4.When some problems can’t be solved by customers, our engineer can go to door to support.
