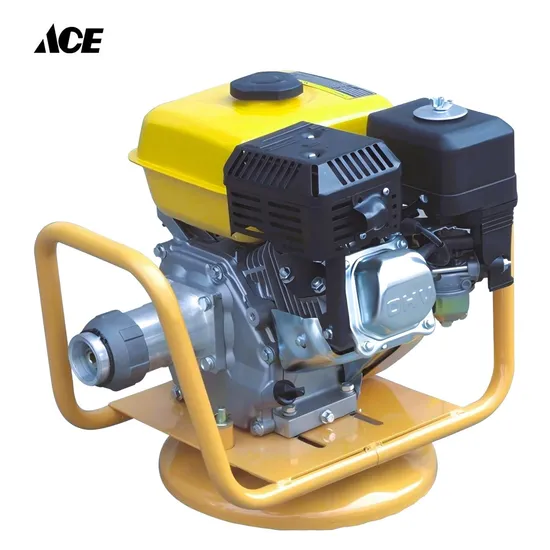

Eco-Friendly High Frequency Petrol Engine Concrete Vibrator

Product Description

(ZXR) Hot Sale Constructiontool Gasoline Engine 4-Stroke Concrete Vibrator
Product Uses

Gasoline engine concrete vibrator , work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.

Specification Date

model	ZXH	ZXR	ZXL	ZXRB	ZXD
Engine	air-colled,single cylinder,4-stroke,gasoline/diesel engine
engine type	petrol honda GX160 5.5HP	Petrol Robin EY20 5.0HP	Petrol lifan 5.5hp	petrol robin RB20 5.0HP	Diesel 170F 4.0HP
Speed no-load(rpm)	3600
vibrator head(dynapac/japenese type)mm	32.38.45.50.60.35.50.70
flexible pipe(m)	43198
operating weight(kg)	20.5
shipping weight(kg)	22
driver shipping size(L*W*H)(cm)	53*38*53
poker shipping size (L*W*H)cm	75*75*5.5

Match concrete vibrator shaft :

Item	Concrete vibrator shaft
Model	¢(mm)	ZX35	ZX-38	ZX-45	ZX-50	ZX-60	ZX-70
Diameter of head	¢(mm)	35	38	45	50	50	70
Length of head	L (mm)	380	420	420	480	410	450
Vibrating Frequency	(HZ)	183	185	185	200	200	200
Vibrating Ampitude	(mm)	0.91	1	1.2	1.15	1.15	1.35
Dia of flexiable hose	D(mm)	30	30	32	36	36	36
Diaof flexiable shaft	D(mm)	10	10	10	13	13	13
Weight (6mtr)	(kg)	14	15	16	20	21	24
packing size	CM	75*75*5.5

Packaging & Shipping

SAMPLE ROOM

Hot Products

Excavator	Surface Finishing Screed	Concrete Vibrator	Power Trowel
Remote Control Trowel	Concrete Mixer	Plate Compactor	Compactor Machine
Drywall Sander	Steel Bar Cutter	Vibratory Roller	Steel Bar Bender

FAQ

FAQ

1. Do you guarantee safe and secure delivery of products? Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.

2. Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.

3. What is the average lead time? For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment. The lead times become effective when we have received your deposit, and we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.

---
