purpose
Itis mainly used for packing all kinds of plastic light and thin black andnon-ferrous metal wastes to form a compact cuboid package, which is convenientfor storage and transportation. It is an ideal equipment for metal wastetreatment in steel plants, non-ferrous metal plants and smelters.
characteristic

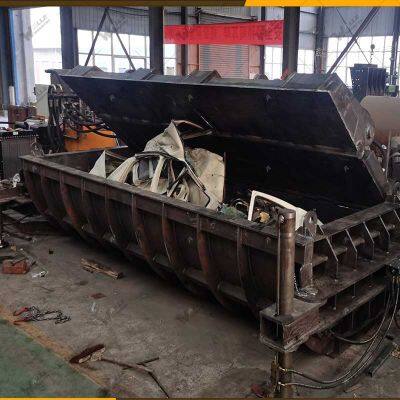

a：Therotary closed cover structure is adopted, and the opening area of the materialbox is large, which is particularly convenient for feeding large, empty andthin materials.
b：Allmoving parts are hydraulically driven and work stably; High packing pressure,compact packing blocks and high packing efficiency.
c：Themanual & digital valve is simple, convenient, safe and reliable.
Q：What is the delivery period for the baler?
A：WLB-5000 using cartridge valves, valve control mode 3 + 2, due to this set of customized valves production cycle is long, the general cycle time is 45 days
| Item | Parameter | Note |
| 1 | Main | Model | YG320/220-4000 | 1/320T |
| Cylinder | Nominal thrust | 1826KN | Trip | 4000MM |
|
| 2 | Level① | Model | YG200/140-600 | 2/200T |
| Pressing material |
| Cylinder | Nominal thrust | 785KN*3 | Trip | 600MM |
|
| 3 | Level② | Model | YG200/140-600 | 2/200T |
| Pressing material |
| Cylinder | Nominal thrust | 785KN*3 | Trip | 514MM |
|
| 4 | Box size (L*W*H)（MM） | 5000*2000*1500 |
|
| 5 | Bale size（L*W*H）（MM） | (~600)*1000*1000 |
|
| 6 | Working pressure（Mpa） | 21.5 Mpa |
|
| 7 | Output bale mode | Crane |
|
| 8 | Bale density(Kg/m3) | ≥2000(Fe) |
|
| 9 | Single cycle time | ≥130S |
|
| 10 | Operation mode | Handle operation |
|
| 11 | Equipment weight | 30T |
|
| 12 | Dimensions of equipment | 6500*2400*2700mm |
|
| 13 | Engine | Model | HBE | Power | 150HP |
|
| Rolling | 2000r/min | Quantity | 1 |
|
| 14 | Oil pump | Model | A4V180+180 | Pressure | 31.5Mpa |
|
| Flow | 376ml/r | Quantity | 1 |
|
| 15 | Average fuel consumption | 15L/h |
|
