a to Z Full Automatic Turnkey 330ml 500ml 1500ml Pet Plastic Bottle Drinking Mineral Pure Water Filling Plant Price Liquid Beverage Bottling Filling Machine

Product Description

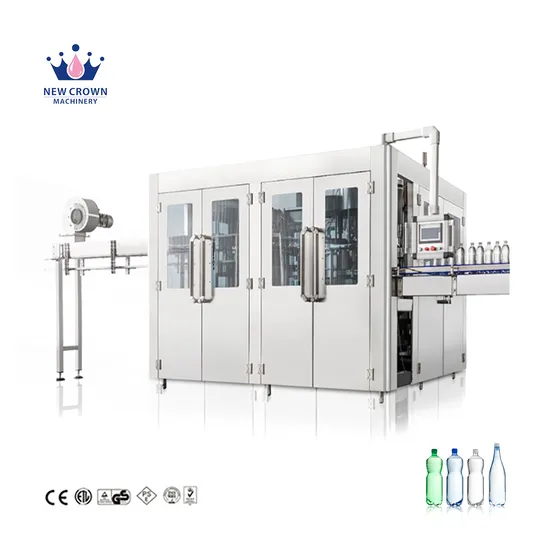

Mineral water filling machineMonoblock means the filling machine integrates washing machine, filling machine and capping machine in one frame. The driving system will be transmitted step by step which makes the speed more stable.
The monoblock filling machine will be made basing on:
1, the production capacity per hour
2, bottle type: plastic bottle, glass bottle or another
3, cap type: plastic screw cap, aluminum screw cap or another

Mineral water filling machine
Model	CGF12-12-4	CGF18-18-6	CGF24-24-8	CGF32-32-10
Capacity	3000-4000BPH	5000-6000BPH	8000-10000BPH	10000-14000BPH
Applicable bottle	Plastic bottle 500ml-1.5L Plastic screw cap
Applicable filling content	Mineral water, wine, non-carbonated water
Washing station	12	18	24	32
Filling nozzle	12	18	24	32
Capping head	4	6	8	10
Main motor power	2.2kw		2.5kw
Water pump power	0.37kw
Dimension (mm)	2350*1850*2450	2700*2100*2450	2800*2400*2450	3200*2800*2450
Weight (kg)	3500	4500	5500	6800

Main Features
1. Machine structure
1) washing, filling and capping part in one unit;
2) one driving system makes the speed more stable
3) need one person to operate the machine
4) no noisy while running
5) more compact
6)different bottles can be applied in same machine (the bottle neck should be the same)
2. Washing part
1) the star wheel to hold the bottle neck to avoid damage the bottle mouth
2) there is nylon grip to protect bottle mouth
3. Filling part
1) round liquid tank, no residual after filling
2) the valves are stainless steel 304
3)no bottle no filling
4)filling level can be adjusted
4. Capping part
1) there is anti-rotary blade to fix the bottle without moving
2) the capping torque can be adjusted
5. Control system
1) PLC control
2) Touch screen
6. Electric part -- All the electric parts are well-known brand.
Please send us the inquiry with above points so that we can help to send better quotation for reference.
1) the liquid tank is round, there is no residual after filling
2)the material is SUS304 which is anti-corrosive
3) different bottles can be used in same machine (the bottle neck should be the same) by changing some parts;
4) Less area to place the machine
5)Low cost in investment
6) Low energy consumption

---
