Granulator Stainless Steel Belt for Granulation Machine

Product Description

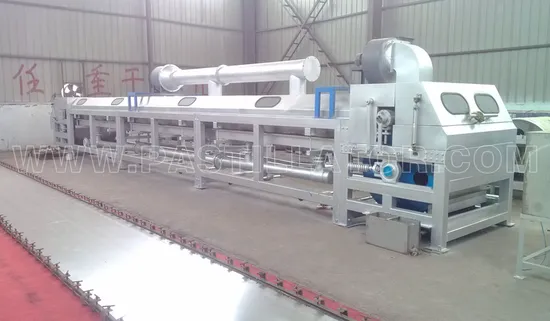

Stainless steel belt is the main parts of cooling system. Our steel belt is special used for chemical pastillator and flaker. The belt is made of stainless steel belt raw material from Japanese NIPPON brand. It is installed under the pastillator header. The molten chemical materials are dropped on the belt and cooled to become solid granules.
The length, width and thickness of the belt are customized according to customer's request.
KEY FEATURES AND OPTIONS
1. Smooth and hard surface, uniform thickness, high flatness, especially for some viscous materials and difficult to cool materials to provide a reliable guarantee, so that the particles are regular.
2. Good steel property, small elongation and high tensile strength, so as to ensure the uniformity and stability of the product in the operation of the steel strip and easy to scrape off.
3. It has strong high temperature resistance and corrosion resistance, which extends the service life of the steel strip.
4. Professional welding team and a complete set of welding technology and equipment. After special process treatment, the welding joint is firm, smooth. So it ensure that the welding joint does not crack and deform in operation.
5. It adopts European imported hot vulcanized rubber strips and special adhesives, adopts advanced bonding technology, and is operated by professional technicians. The adhesive strength of rubber strips is firm and the service life is long.
6. Experienced technical service engineers can timely and efficiently help to solve various problems in the use of steel strip.
PRODUCT PARAMETERS

MODEL	1250SA	1350SM
Thickness mm	Width mm	Width mm
0.8	400-1500	400-1500
1.0	400-1500	400-1500
1.2	400-1500	400-1500

* The specifications are approximate and will vary depending on options selected.
CHEMICAL COMPONENT
1250SA

C	Si	Mn	Ni	Cr	P	S
≤0.15%	≤1.00%	≤2.00%	6.00-8.00%	18.0%	≤0.04%	≤0.03%

1350SM

C	Si	Mn	Ni	Cr	Cu	Nb
≤0.07%	≤1.00%	≤1.00%	3.00-5.00%	15.0-17.5%	3.00-5.00%	0.15-0.45%

MECHANICAL PROPERTIES

MODEL	1250SA	1350SM
Yield Strength N/mm²	950	1100
Tensile Strength N/mm²	1250	1350
Hardness HV	400	380
Density Kg/m³	7.9	7.8
Coefficient of Elasticity (200ºC)RT N/mm²	180,000	200,000
Thermal Conductivity(200ºC) W/mk	18	18
Elongation %	19	5

Specific Heat Capacity KJ/(kgK)	0.50	0.12
Welding Index	0.71	0.82
Maximum Temperature ºC	260	350

APPLICATION AREA
This equipment is suitable for large amoun of kinds of chemical raw materials. Such as petroleum resin, phenolic resin, rosin resin, polyamide resin, epoxy resin, sulfur, paraffin, special wax, asphalt, stearic acid, fatty acid, chloroacetic acid, antioxidant, hot melt adhesive, maleic anhydride, carved white block, p-nitrochlorobenzene, metaanhydride and aluminum sulfate Calcium chloride, sodium thiocyanate, m-phenylenediamine, catechol, various rubber additives, etc.

---
