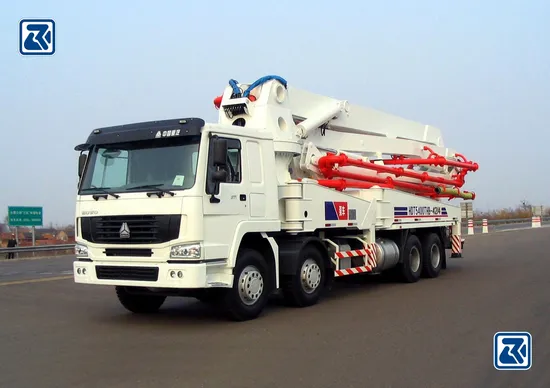

37m Sinotruk Mounted Concrete Pump Truck

Product Description

37m Sinotruk Mounted Concrete Pump Truck
Your are always welcome to visit our factory at any time.
Our main Overseas Business Scope:
- All types of heavy duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service & Maintenance
Our complete selling system including sale, spare parts sale, after-sale service and customer service.
1. Basic technical data: (Configurations can be changed)

Category	Item	Measuring Unit	21m		25m
Engine	output power	KW/(r/min)	97/2600	132/2500	249/2000	132/2500
Pumping Systems	Max. Theor, output(high/low pressure)	m3/h	37/63	50/80	60/100	50/80
	Max. Theor. concrete output pressure(high/low pressure)	Mpa	13/7.5	13/7.5	12/8	13/7.5
	Pumping frequency(high/low pressure)	min-1	14/24	19/30	14/23	19/30
	Concrete cylinder dia. ×stroke	mm	φ200×1400	φ200×1400	φ200×1800	φ200×1650
	Feeding height	mm	1450	1450	1450	1450
Placing Boom	Structure type		3R	3R	4M	4M
	placing boom max height/depth/radius	m	21/10.5/17	21/10.5/17	25/14.4/21	25/14.4/21
	Slewing angle	°	365	365	365	265
Vehicle Paramaters	Overall dimensions	mm	9570×2180×3495	9400×2480×3535	10283×2480×3670	9800×2480×3535
	Total weight	Kg	14680	15940	19000	15800

2. Our Factor
SINOTRUK has an annual output of 180, 000 vehicles and 200, 000 engines capacity.
Your are always welcome to visit our factory at any time
3. Packing & Delivery & Main products & Our Service
4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions
5. FAQ

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1 unit.

Q3: Production period?

A: (Truck & trailer) Within 30 days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment

Q4: Payment term?

A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100% T/T should be paid before delivery

Q5: Shipping?

A: (Truck & trailer) by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc. ) by road or railway. (Russia, Mongolia, Kazakhstan, Uzbekistan, Vietnam, Laos etc. ) (Parts) by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts?

A: Yes, we can supply truck and semi trailer parts as your request, such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
7. Company information
We are one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. If you want to buy any truck, trailer or truck parts, please contact us!
We sincerely hope to cooperate with you to expand market in your country!

---
