Product Details
Product Description
Product Description
Product Show
Technical Parameters

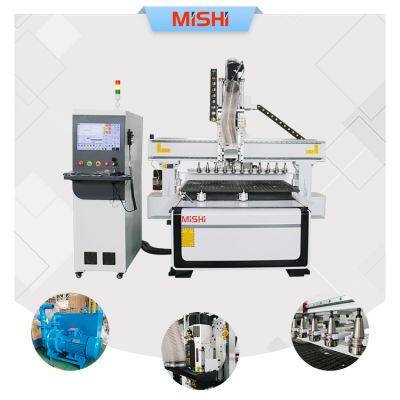

ATC Cnc Router Furniture Making Machine
|
Machine Type
| MSW1325/1530/2040/2140/2050 Inline ATC CNC Router
|
Operating Voltage
| AC380V 50HZ 3HP Three Four-Wire
|
Work Plan
| 1300*2500*200/1500*3000*200/2000*4000*200MM
|
Maximum Empty Travel Speed
| XY50000mm/min Z20000mm/min
|
Working Speed
| 15000-30000mm/min
|
Table Structure Size
| Vacuum Table 1260*2480 6 Partitions 24 Holes
|
Bed Structure
| Heavy-Duty Double-Layer Unloading Trapezoidal Bed
|
Transmission
| Rail 25 Square Rail
|
Rack High Precision 1.5M Helical Gear
|
Reducer Japan SHIMPO
|
Screw Taiwan TBI
|
Tool Library
| 12-Tool Follow-up Tool Magazine ISO30
|
Frequency Converter
| 11kw inverter
|
Spindle
| JST 9kw ATC Spindle
|
Spindle Speed
| 0-18000rmp
|
Motor
| Leadshine Servo Motor
|
Run Command
| G code
|
Operating System
| Taiwan LNC control System
|
Total Weight
| 1.5T
|
Plate Fixing
| 7.5kw Water Circulation Vacuum Pump
|
Dust Removal
| 5.5kw High Power Dust Collector
|
* The size, color, configuration and design can all be customized according to customer's requirements
|
Detailed Images
Application
Inline ATC CNC Wood Router For MDF cutting wooden furniture cabinet door making♦ It mainly used for woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry,wood panel,wave board processing, MDF sheet carving, screen, calligraphy tablet desig-n, relief, wood furniture, computer tables, panel furniture, office furniture,instrument industry, and so on. ♦ It can also for advertising signs, acrylic brands, 3D characters, garden or wall decoration, logo, forming system module,billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold.
(1)Stable Structure: the overall steel structure welded, the vibration (tempering) aging treatment, long-te-rm use of no deformation.
(2)Machine adopts Taiwan SYNTEC/LNC control system, high-performance industrial control system, w-hich has the excellent and stable quality, good maintenance and can control to process the completion of the multi-level 3D sculpture, with fast and smooth three-dimensional processing, carving and cutting.
(3)The linear guide rail adopts Taiwan Hiwin 25mm linear square orbit, double row and four-ball slider, lo-ading capacity, smooth running, keeping high accuracy.
(4)The machine worktable adopts the international leader vacuum technology, surface density, deformat-ion, high adsorption capacity, which can strongly absorb different materials, convenient maintenance. au-tomatic lubrication, only need to hand gently press can achieve the whole machine maintenance.
(5)The software compatibility: compatible type3/Castmate/Artcam/ Wentai/Mastercame and other design software.
Recommended by seller
MISHI 4x8 ft CNC Router 1325 CNC Router Machine Woodworking Engraving Wood CNC Router Machine Price In Italyy$2,299.00 - $2,880.00 / set1 set
MISHI ATC CNC Router 2030 2040 Nesting Line Automatic Furniture Woodworking CNC Router Machines$6,880.00 - $8,999.00 / set1 set
Furniture Making Multi Head CNC Router 1325 4 Spindle 5.5 Kw CNC Router Woodworking Machinery$7,699.00 - $8,399.00 / set1 set
Jinan MISHI 4 axis 6060 desktop metal cnc milling machine 6040 mini milling machine for metal$1,099.00 - $1,880.00 / set1 set
MISHI laser cutting machine for sale 6kw fiber laser cutting machine cnc lazer laser cutting machine$7,850.00 - $8,850.00 / set1 set
Factory hot sale 9060 100W laser engraving machine 1390 acrylic wood co2 laser cutting machine for metal$1,299.00 - $1,999.00 / set1 set
Jinan MISHI handheld laser welding machine 1000w 1500w 2000w fiber lazer welder metal welding machine$4,299.00 - $5,999.00 / set1 set
Full automatic China edge banding machine pvc soft forming edge banding making machine$5,999.00 - $6,599.00 / set1 set
After sales service
We have professional pre-sales and after sales service Mingshi CNC team 1. 24/7 online service .
2. 3 years warranty for machine.
3. After sale office in differ country
4. Free spare parts with shipping.
5. Free online technical support and install train.
Shipping and Packing
Packaging Details1. Outside package: Standard export plywood case for CNC Router for advertising 2. Inner package: Stretch film and plastic film for humidity.PortQingdao/Shanghai/Yiwu/Dalian/Guangzhou/Tianjin/Shenzhen
Company Introduction
FAQ
Q: How to install and maintain the machine? A: Before you use it, we will send the operation tutorial and installation operation video with an English version to you. If you still can not operate, we will provide video guidance online.Q: What are the machine working environment requirements? A: The machine should be fixed on a stable table and the environment should be kept clean and tidy to avoid contact with dust, static electricity, humidity, and chips to cause parts failure.
Q: How many days do the goods ready to ship?A: The specific delivery date needs to be communicated with the sales. If we have stock, it can be shipped within five days. If it is not in stock, it will take 15 to 20 days to prepare goods. By the way, Most of the machines are in stock.
Q: What is the mode of transportation of the products?A: The specific transportation method can be selected according to the needs, like by sea, by air, or by train. Our trade terms are mostly centered on FOB, but we offer EXW, CIF, depending on which is more convenient for you.
