Disposable Plastic PE Shoe Cover Making Machine

Product Description

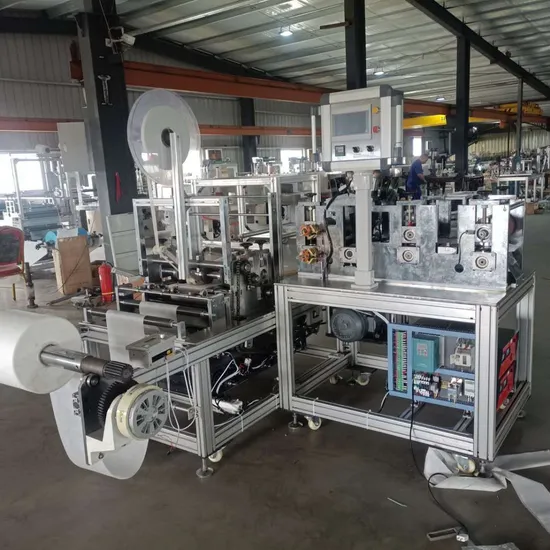

Automatic PE Shoe Cover Making Machine
Description
This equipment can be used to produce disposable shoe covers with PE or CPE material. It is a full automatic model with stable running and can be operated with only one worker.
Equipment specifications

Model	SAN-SC
Material	PE/CPE + Rubber band
Product width	510 mm
Working speed	150-170 pcs/min
Power supply	380 V 50 Hz
Packing size	1700*1550*1300 mm
Machine dimension	1500*1500*1700mm
Machine weight	750 kg
Power	3.5 kw
Finished product size	400*160mm

Major parts

Name	Quantity
Unwinding unit	Mechanical axis 1 pcs
Folding unit	1 pcs
Driving unit	1 pcs
Heating unit	2 pcs
Heating roller	3 pcs
Rubber band unit	2 pcs
Triangle folding unit	1 pcs
Reinforce heating unit	1 pcs
Reducer motor	1.5 kw
Copper knife	1 pcs
Roll cutting unit	1 set
Electrostatic eliminator	16 kw 1 pcs
Main motor	1.5 kw 1 pcs
Convertor	1.5 kw 1 pcs
Temperature meter	4 pcs
Machine frame	No.6 Channel steel

Our Service
⇒One year guarantee for the whole machine, all life follow-up service.
⇒24 hours technical support by email.
⇒Technicians oversea set-up and workers training.
⇒User- friendly English for operation system.

Packing & Delivery

Packaging Details: Stretching film packing
Delivery Detail: Shipped in 30 days after payment
PACKING IS SEAWORTHY AND SAFE.
Exhibition♥

Q1: What is the warranty for the machine?
A1: For the machine, we offer one year warranty. If any quality problems occurred under normal conditions during this period, we will take on the costs of maintenance and replacement and other related costs.
Q2: How to operate and maintain the machine?
A2: First, we will provide a professional and detailed manual to you with the machine; Second, we will test and debug the machine into the best condition before shipment for you. Last but not least, we also provide abroad technical training services and online expertise consulting.
Q3: How to get raw material or auxiliary material for the machine?
A3: Our company has over10 years of experience in this industry, we have accumulated various contact information of upstream&downstream firms in fields of raw material, auxiliary material, and package for the products. We believe that our professional team can always offer you the best solutions.
Q4: How to find the matching accessories or wearing parts of the machine?
A4: We offer free replacement for wearing parts during the warranty period. Clients can also get the parts from us with a favorable price if it is out of the warranty.

---
