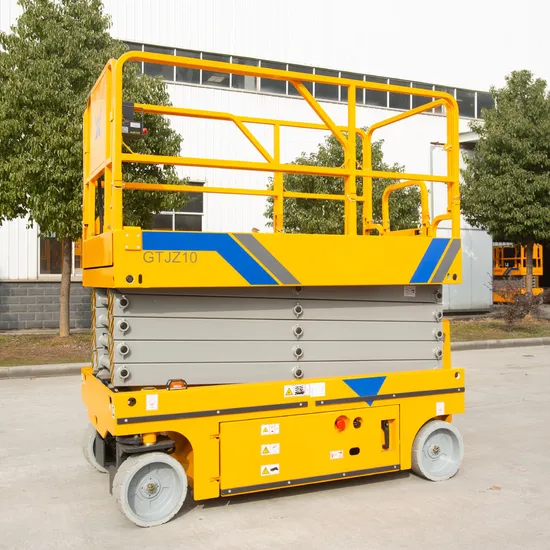

10m Electric Motor Driven Self Propelled Scissor Lift Platform

Product Description

10m Electric Motor Driven Self Propelled Scissor Lift Platform
Product Description:
1.Products advantages
Self propelled Scissor Lifts does not need any outriggers, one man operates on the working platform
Moving forward,turning around and lifting up are easily operated.
Short chargeable time and long dural time of the battery.
Easily moved, spacious working platforms, smooth working condition and high working efficiency
2.Moving method
The chargeable battery provides the power to move and steer around.
3. Lifting Power
The chargeable battery provides the power to raise up the lift platforms.
Working heights rangs from 4m,6m,8m,9m,10m,12m,14m.
4. Applications
It is widely used for aerial installation and maintenance of the working sites without power supply and with smooth working grounds, such as hotels, grand hall, sport stadium, large factory, workshops, warehouse, granary,bus/railway stations, hotels,airports, gas station and aerial pipeline

1.	Platform height maximum	9.9m
2.	Working height, maximum	11.9m
3.	Maximum load capacity	320kgs
4.	Length(stowed)	2.485m
5.	Width	1.15m
6.	Height(stowed)	2.465m
7.	Height(Guardrail fold stowed)	2.01m
8.	Platform height minimun	1.324m
9.	Platform measurement	2.26*1.13m
10.	Length extension deck	0.9m
11.	Ground Clearance-center	100/20mm
12.	Turning radius Minimum	0/2.2m
13.	Travel Speed(stowed)	3.2km/h
14.	Travel Speed(raised)	0.8km/h
15.	Maximum Allowable working Angle	2°/3°
16.	Grade ability	14°(25%)
17.	Tire	Φ381*127mm
18.	Weight	2450kgs
19.	Lift Motor	24/4.5V/KW
20.	Battery	4*12/150V/AH
21.	Charger	24/20-30V/A

---
