Haichen 880 Tons Large Aluminum and Magnesium Cold Chamber Die Casting Machine

Product Description

Product Description

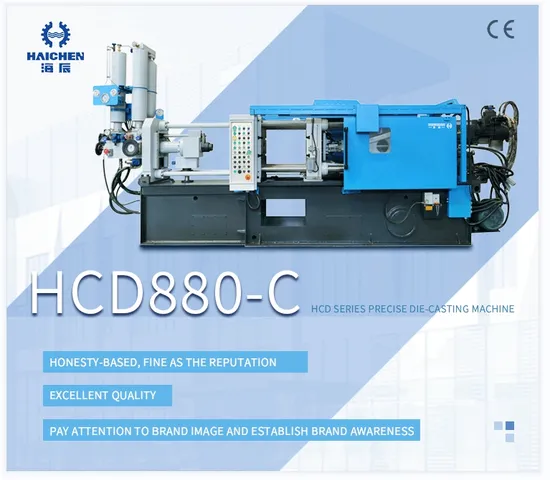

Haichen Cold chamber die casting machine
HCD-C series
The HCD-C cold chamber die casting machine offers locking forces from 350 to 20800 kN for producing aluminum and magnesium parts. Haichen cold chamber die casting machine with C and AL series.
Detailed Photos

Product Parameters

Cold Chamber DieCasfing Machine		HCD880-C
Clamping Force	KN	8800
Clamping Stroke	mm	760
Die-thickness(Min.Max)	mm	400-950
Platen size(H"V	mm	1400x1400
Space between Tie-bais	mm	910x910
Diameler ofBars	mm	180
Casting Foroe	kN	253-680
Casting Stroke	mm	760
njecion Plunger Diameter	mm	80,90,100
Max.Casting Volume(AL)	kg	6.7,8.4,10.4
Max.Casting Volume(MG	kg	4.3,5.4,6.7
Casting Pressure(Min-Max)	MPa	50.3-123.7 39.8-97.7 32.2-79
Cast projecion Area	cm²	646-2484
njecion Position	mm	0,-140,-280
Ejeclor Space	mm	290
Extruding Flange Diameter	mm	180
Heigh of Extuding Flange Pattem	mm	20
Ejecfion Force	kN	320
Ejecfion Stroke	mm	180
Dry Cycle Time	S	12
System Working Pressure	MPa	16
Motor Power	kW	37
Tank Capacity	L	1100
Machine Weigh	kg	39000
Overall Dimensions of Machine(L*W*H)	mm	9960x2450x3330

Company Profile
We have more than 20 years experience in "HAICHEN' brand die casting machine production with the advanced technology.There are engineers who are responsible for the technics improvement too in order to provide better machines for our customers. Easy operation and professional design ensure quality and precision.
Haichen is an important manufacturer of die-casting machine equipment, specializing in providing die-casting production solutions for aluminum alloys, magnesium alloys, zinc alloys, and copper alloys. Our products cover solutions for large die casting islands. Haichen cooperate closely with customers to jointly promote innovation and development in the die-casting industry. We not only have advanced die casting processes, but also are committed to technological innovation, researching and developing technologies such as vacuum casting, extrusion casting, and intelligent production.
Our Advantages
Advanced Cold Chamber die Casting Machine Manufacturers
Cold chamber die casting can provide high-pressure die casting, therefore it has advantages such as environmental protection, energy saving, high production efficiency, strong adaptability, high degree of automation, stable process, superior mechanical performance, safety and durability.
We provide high-quality cold chamber die-casting machines at affordable prices for Mexico, India, Pakistan, the Middle East, and China.
Packaging & Shipping
FAQ
Q: What is cold chamber die-casting machine?
A: Cold chamber die-casting machine is a high-pressure die casting equipment that does not immerse the injection chamber and injection punch into the molten metal, but pours a certain amount of molten metal into the injection chamber and then performs injection. This type of equipment is typically used for processing non-ferrous metal materials such as aluminum alloys, magnesium alloys, and copper alloys.
Q: Difference between hot chamber and cold chamber die casting
A: Hot chamber die-casting machine:
1. The chamber(gooseneck) is immersed in an alloy liquid that maintains a constant temperature. This design allows the molten metal to be directly injected into the mold under high pressure, simplifying the operation process.
2. Used for casting low melting point metals such as zinc, copper, and lead.
Cold chamber die-casting machine:
1. The chamber and furnace are separate, and the molten metal needs to be poured from the crucible into the injection chamber for injection.
2. Used for high melting point metals such as aluminum, magnesium, copper.

---
