US$13,000.00-68,000.00
|
1 set
(MOQ)
|
Basic Info.
Automatic Grade
Semi-Automatic
After-sales Service
One Year
Machine Color
According to Client′s Requirements
Working Width
1000mm and 1300mm
Spare Parts
Wire and Cylinder
Bearing
Koyo/or According to The Customer′s Requirements
Operational Zone
Human-Machine Interface
Fiber Length
Fine Quality
The Connection Method
Conveyor Belt
Electrical Components
Zhengtai / According to The Customer′s Requiremen
Machine Qty
According to Customer′s Produce Requiremens
Transport Package
Standard Packing for Export
Specification
1+6 rollers
Production Capacity
180-350kg/H
Product Description

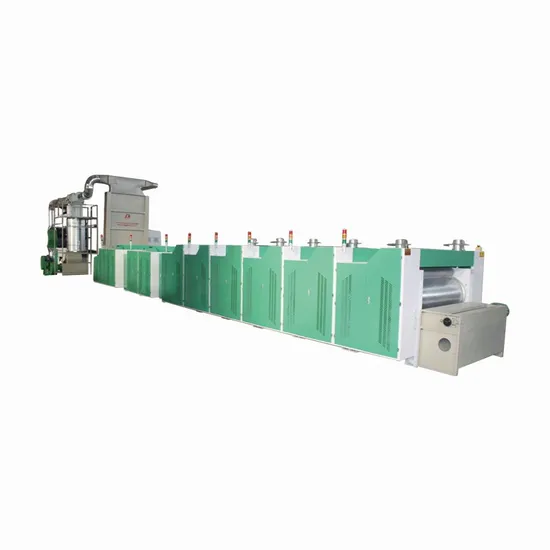

2021 hot sale garment opening machine with ce certificate 7 rollers for tearing waste clothes / fiber fabric recycling machine
Textile waste recycling machinery can be quickly opening various waste rags,waste cotton yarn,old clothes,cotton,chemical fiber,linen,non-woven fabrics and other scraps.The combination of the cutting machine and the recycling production line makes the operation more convenient.
Machine list,
| NO. | Machine name | Qty |
| 1 | Cutting machine-GM800C | 1 |
| 2 | Opening machine-GM250 | 6 |
| 3 | Cleaning machine-GM600 | 1 |
About cutting machine,
| NO | ITEM | DESCRIPTION |
| 1 | Model | GM800C |
| 2 | Dimension of M/C | 3200L1000W1100H(mm) |
| 3 | Weight | 800kg |
| 4 | Total power | 7kw |
| 5 | Main motor | 3 phase AC power 50Hz |
| 6 | Protection | Main motor overload protection Open phase protection |
| 7 | Working width | 350mm/ Unadjustable |
| 8 | Number of Rotating blade | 4 |
| 9 | Number of Fixed blade | 1 |
| 10 | Bearing | High quality bearings |
| 11 | The connection method | Conveyor belt |
| 12 | Electrical components | Zhengtai |
| 13 | Capacity | 800KG/H |
| 14 | Note | CNC cutting equipment and machining center equipment will be used in the manufacture of the machine. All rotating shaft through dynamic balance test. |
About opening machine and cleaning machine,
| NO | ITEM | DESCRIPTION |
| 1 | Model | Recycling line
GM600*2+6*GM250 |
| 2 | Installation dimensions | 15110mm*2010mm*3050 |
| 3 | Weight | 7550KG |
| 4 | Total power | 75KW |
| 5 | Working width | R1040mm/ Unadjustable |
| 6 | Main roller | Opener
φ600mm/Teeth wire |
Cleaning machie
φ250mm/Teeth wire |
| 7 | Capacity | 150-220KG/H for spinning product |
| Depending on the raw material and product requirements(length of fiber), also the correct operate |
| 8 | Protection | RMain motor overload protection Open phase protection |
| RPhotoelectric sensor induction protection |
| 9 | Dust removal system | By fans to out of workshop |
| 10 | Way of control | Constant power & All Inverter control &PLC |
| 11 | Bearing | KOYO/Or according to the customer's requirements |
| 12 | Electrical components | The key contactors by SIEMENS or according to the customer's requirements |
| 13 | Inverter | MAIFU 16months guarantee and in guarantee send by DHL free |
| | PLC | MITSUBISHI |
| 14 | Print Color | According to the customer's requirements |
Final sample,for example,
About our company,
SHANDONG NEW HAINA MACHINERY CO., LTD
>>
