Hydraulic Factory Price of 90m3/H Stationary Concrete Trailer Pump

Product Description

hydraulic factory price of 90m3/h Stationary Concrete Trailer Pump
Product Description 1. Powerful machine adopts diesel engine (made in China).
2. Import generator is optional.
3. The high quality hydraulic valves and oil pump use Germen REXROTH products.
4. The valve for change-over from high pressure to lower pressure is designed to be easily controlled, which can adjust the condition of the pump easily in accordance with the requirement of job site. Dismantle the tube is not necessary so that it can avoid the pollution.
5. Advanced hydraulic system which change direction hydraulically can run without electrical part.
6. Concrete piston can run back to washing tank, which can easily change the piston and be convenient for maintenance.
7. Tungsten steel glasses shaped plate and cutting ring guarantee long using life.
8. Hydraulic outriggers make easily positioning.
9. Pump can be easily washed.
Technical Parameters

Pumping system	Theoretical concrete displacement	m3/h	64.5
	Theoretical pumping pressure	MPa	8
	Distribution valve		Oblique gate valve
	Slump scope	mm	50~230
	Delivery cylinder bore (diameter)×Stroke	mm	200×1650
	Master cylinder bore×Stroke	mm	100×1650
	Hopper capacity/ Feeding height	m3/m	0.45/1.47
	Max. aggregate size	mm	40(125A)
Power system	Power/Rotating speed	kW/rpm	75/1480
	Brand of diesel engine
Others	Gross weight	kg	5600
	Overall dimensions (L×W×H)	mm	6650×2110×2260

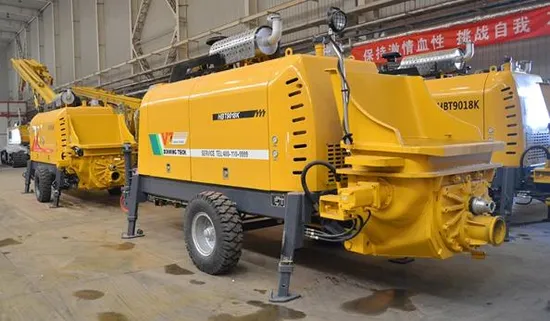

Photos for Reference
