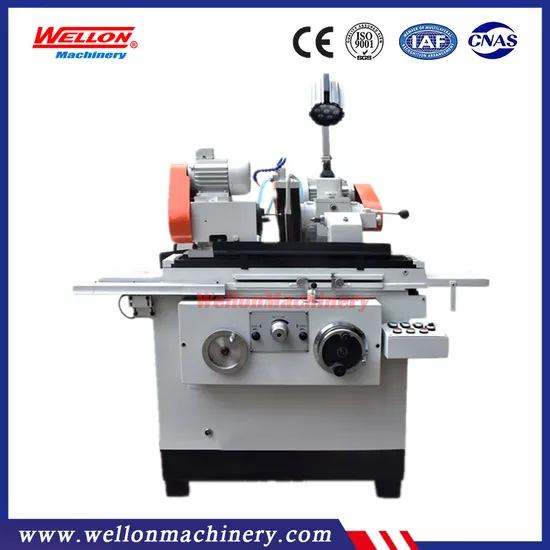

Unviersal Cylindrical Grinding Machine M1308 External Grinder Machine

Product Description

Product Description

Detailed Photos
Product Parameters

Performence Features:
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface
2, tooling way available top, three jaw chuck, and special fixture of spring clip;
3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewing
machines, machinery and other industries processing small parts,
4, vertical moving workbench hydraulic and manual, grinding wheel rack and head are rotating,
hydraulic system USES the good performance of the gear,
5, suitable for tools, machine shop and workshop for medium and small batch production,
6, the machine according to the top is divided into 300 mm.
Technical parameter:

Model	M1308
Grinding dia	dia2-80mm
Center grinding length	300mm
Center height	115mm
Max workpiece weight	10kg
Worktable speed	0.1-4m/min
Wheel peripheral velocity	35m/sec
Max travel of table	340mm
Swivel range of table	-3-+7degree
External wheel size	180-250mm*25*75mm
Internal wheel spindle speed	1600r/min
Tail center	MT3
Machine size	1360*1240*1000
Weight	1500kg
Motor power	2.34kw
Roundness	1.5(OD)
Surface roughness	RA0.25(OD)
Uniformnity of dia.in longitudinal section	5 UM(OD)

Standard accessories:
Coolant tank
Grinding wheel dresser
Wheel balancing mandrel
Driving dog
Carbide-tipped center
Support
Open type steady rest
Wheel flange
Chuck base
Optional accessories:
Wheel balancing stand
Radius dresser
Closed type steady rest
Company information
Packaging & Shipping
FAQ
1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
