Accurate V-Notch Channel Letter CNC Sign Bender Notcher Flanger Stainless Steel Material Making Machine

Product Description

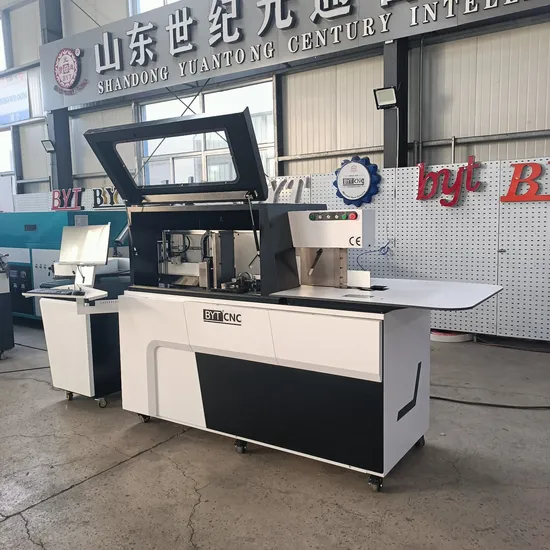

Product Description BYT-A Channel letter bending machine ,it is professional for V Notch flange channel signs making
Feeding-Slotting-V notch flange-Turnup edge-Punching-Bending-Cutting
New Upgrade More fast professional V Notch Flange Channel Letter Bending Machine BYT-A V-flange letter making , Stainless steel letter channel making , Aluminum letter channel making
Advantage 1. Most easy and convenient use ADT 8 axis control system 2. 8 sets servo motor control the mainly function 3. Manipulator+encoder+servo motor 4. The planer slotting system+guide rail+ servo motor 5. V-notch flange +Auto turnup edge: Automatic Angle recognition, servo motor precise control
6. Double pole bending+ servo motor
Product Parameters

Model	BYT-A
Function	Feeding-Slotting-V notch flange(Sawtooth-Punch)-Turnup edge(Edge-Fold)-Punching(Snip)-Bending-Cutting
Applicable material	Stainless steel,Flat aluminum,Galvanized,Iron
Slotting and bending material thickness	Aluminum:0.6-2mm Stainless steel:0.6-1.5mm
V notch flange and turnup edge use material and thickness	Flat aluminum:0.8-1.2mm; Attention: Stainless steel and Galvanized,Iron 0.4-0.8mm
Slotting and bending material width	20-220mm
The Min bending radius	R6 mm
Feeding method	Double manipulator+ encoder
Process precision	±0.1mm
Control system	Independently developed ADT 8 axis control system
Bending	Double pole bending device
Main motor	8 sets Servo Motor
Total power	<5000W
Air pressor	0.8Mpa
File format	dxf, Ai
Working voltage	220V/ 50-60HZ/1P
Weight(kgs)	750kg
Overall size(mm)(L*W*Z)	3400*1620*1350mm
Plywood package size(mm)	2260*1000*1920mm +800*750*1300mm

Company Inforamtion Keep Quality and Service Be Our First Responsibility
Sales Service
1.Technical people have professional english ability and directly with customer communication. 2.24H/7D on line service , when you need we all will be here . 3.Before delivery , accept the international third party finish inspection .
4.Regular return visits to customers for technical guidance, and get high praise from customers. 5.For the products making , have professional technical engineer provide process guide . Various Training Service 1.Provide U disk with detailed operation manual and video. 2.Via on line chat way service(QQ,whatsapp,wechat) for customer in any time. 3.Via teamviewer remote control software to provide on line guidance. 4. Customer come to our factory for learning how to operate the machines. 5.Engineer can go aboard for training if customer needed.
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.

2) If machine has any problem after I ordered it, how could I do?
Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24hours


3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port or your factory directly, please tell us your port name
or your detailed address. There will be best shipping freight and machine price send to you.

---
