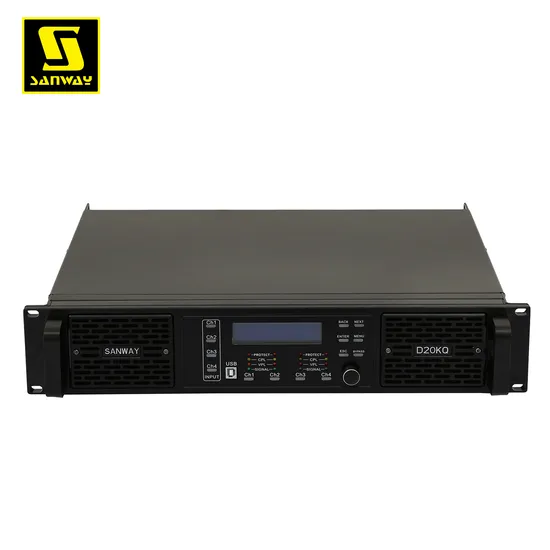

Sanway D20kq Fp20000q DSP Professional 16000W Class D Audio Power Amplifier DJ Audio High Power Amplifier for Subwoofer

Product Description

Sanway D20KQ DSP Professional Audio Amplifier Quiet Fans Power Amplifier for Home Theater
Description:
1>. D20KQ 4 channel Class-D DSP Professional Audio Amplifier is the innovative technology achievement of Sanway Audio.
2>. The D20KQ consists of one 4in & 4out digital processing with 20 factory preset configurations enable user can modify and store the presets conveniently.
3>. The built in DSP including a crossover, parametric EQ filters, limiting and alignment delay, it eliminates the need for outboard loudspeaker processors.
Features:
1>. Sanway D20KQ DSP Professional Audio Amplifier Quiet Fans Power Amplifier for Home Theater;
2>. 4x2100W at 8 ohms, 4x4000W at 4 ohms;
3>. It innovated high-efficiency cooling system with special design for fast cooling;
4>. DSP function: Mute, Polarity, Gain, EQ, Xover, Limiter;
5>. Ethernet function (Wi-Fi): to control many D20KQ amplifiers with one computer.

Specification:

DSP
MODEL:	D20KQ DSP Professional Amplifier Quiet Fans Power Amplifier
Input:	4 channel
Output:	4 channel
PC Com Port:	1 USB Com Port on front panel, 1 USB Com Port,2 RS485 Com Port on back panel (RJ-45)
Processor:	48KHz Sampling frequency, 48-bit Fixed-Point DSP, 24-bit A/D and D/A converter
Dynamic range:	>110dB
Frequency Response:	±0.25dB, 20Hz --- 20KHz
Distortion:	< 0.01%, 20Hz - 20KHz @ +10dBu balanced input
Signal to noise ratio:	>110dB
crossover filter:	Each output channel can be independently set as LPF and HPF and APF, The parameters can be adjusted, Filter type:Butterworth, Bessel, Linkwitz-Riley; The Crossover Frequency:20Hz---20KHz, Slope:12,18,24 or 48 dB/octave
EQ:	Bandwidth:0.2 to 36 oct, Frequency:20Hz to 20KHz, Gain: -24dB to +12dB, step:0.2 dB
Delay:	0ms to 115ms
Display:	2 x 20 LCD
Store Settings:	20 user program dynamic storage
AMPLIFIER
Model	D20KQ DSP Professional Amplifier Quiet Fans Power Amplifier
Output Power
8Ω Stereo Power	4×2100W
4Ω Stereo Power	4×4000W
8Ω Bridged Monon Power	2×8000W
Frequenty Response	20Hz-20kHz ±0.5dB
THD+N(Rated power,4Ω/KHz)%	0.10%
Signal Noise Ration(dB)	110dB
Input Impedance	20KΩ Balanced / 10kΩ Unbalanced
Output Connectors	Speakon Connectors(NEUTRIK)
Power Requirement	100-120V-50-60Hz or 200-240V-50-60Hz
Dimension	483×377×88mm
Net weight	13kg

---
