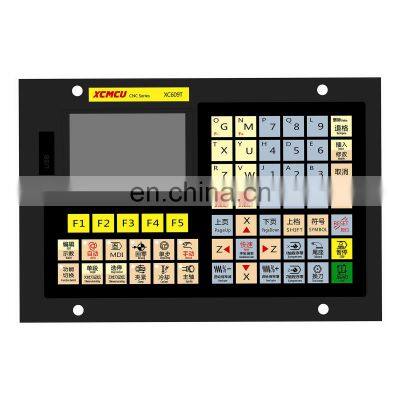

XC609T 2 Axis CNC Control System G-code 32 Bit Lathe Automatic CNC Controller with USB InterfaceProduct Description Description:The XC609T lathe CNC system is a new generation CNC system for CNC lathes developed by our company. Adopt international standard G code programming, full-screen editing program, Chinese and English operation interface. The operation of the system is simple and intuitive. Through programming, the outer circle, end face, grooving, taper, arc, thread, tapping, deep hole drilling, etc. can be processed. It supports variable frequency spindle servo spindle control, supports electric tool post, input and output customization, input and output port expansion and other functions, very cost-effective.Specification:Number of control axes: 2 axes (X, Z)Number of linkage axes: full linkageAnalog spindle: 2 channelsSpindle override: 50%~120%Minimum command unit: 0.001 mmMaximum command value: ±99999999 x minimum command unitRapid feed rate: 12000mm/minRapid feedrate override: F0, 25%, 50%, 100%Cutting feed rate: 12000 mm/minFeed speed override: 10%~150%Electronic gear ratio: 1~65535: 1~65535Automatic acceleration and deceleration: YesPositioning: G00 (Possible linear interpolation positioning)Interpolation: straight line (G01), arc (G02/G03/G05)Return to reference point: automatically return to reference point (G28)LCD: 3.5 inches TFT LCD screen, resolution 480X320MDI software keys: 5Single step feed: x1, x10, x100Communication interface: U disk interfaceExternal handwheel interface: YesI/O interface: 24/24 (expandable to 96/96)Pause (seconds): YesExact stop status: YesExact stop: YesStore itinerary check: YesMDI operation: Yes, support multi-stage operationReset: YesSelect stop switch: YesSingle stage operation: YesProgram protection switch: YesSelf-diagnosis function: YesEmergency stop: YesPower supply: DC 24VCoordinate system: G50 set coordinatesAutomatic coordinate system setting: YesDecimal point input: YesAuxiliary functions: M2 digits, M code self-definition, manual/MDI/automatic control of spindle forward, reverse and stop; control coolant start and stopSpindle function: analog spindle, dual spindleEditing function: parameter, diagnosis input by bit, program editing, MDI multi-program segment executionStorage capacity: 256MNumber of stored programs: 200Display of program name: Chinese, English, number, combinationProgram line search: YesSkip optional program segment: YesProgram switch: YesDisplay: Chinese, EnglishProcessing time, number of parts display: YesSpindle speed, M/S command: YesFeatures:-Based on 32-bit microprocessor, full linkage, 0.001mm interpolation accuracy, the maximum speed is 12m/min.-Adopt 3.5-inch color widescreen LCD, resolution 480*320, Windows interface style. Equipped with 5 soft-function buttons, the operation is simple and easy to learn. Provide a rich display interface with parameter classification, alarm log, system diagnosis, etc. to facilitate debugging and maintenance.-International standard G directive.-Part program full-screen editing, built-in 256M massive program space, can store 200 part programs.-With USB interface, it supports U disk file reading and writing, data backup and U disk direct processing (DNC).-Input 24 (expandable to 96) points, output 24 (expandable to 96) points (custom), flexible and convenient.-Chinese/English operation interface, complete help information, more convenient operation.-Support multi-level operation authority, facilitates equipment management, and has a time-limited system lock function.Package List:1 Set of CNC Controller Packaging & ShippingPackage: Normally we use the standard exporting packaging. We also can according to clients' request . Shipping : 1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.2. By Air: Delivery from the Shanghai airport to customers’ destination city air port.3. By Sea: Delivery from the Shanghai sea port .Company InformationTZT has been speciliazing in Business & Industry,Hobbies & Toys,CNC Products and Health care supplies for over8years.We committed to enhance customer satisfaction by continually improving the process with a vision of expertise in the field. Aiming to provide high quanlity products and great service for buyer,we are strict on product quanlity control and offer instant communication service.Welcome to contact us!Our Advantages:- Source only the best consumer goods and ensure the highest quality.- Streamline the buying and payment process, and make it as easy as possible.- Help the customers all over the world discover products and manufacturers in China.- The Shortest order processed time and speed delivery FAQQ1. Can I have a sample order?A: Yes, we welcome sample order to test and check quality. Q2. What about the lead time?A: Samples arrived often need 3-5 days. Q3. Do you have any MOQ (minimum order quality)limit?A: Low MOQ, 1pc for sample checking is available. Q4. How do you ship the goods and how long does it take to arrive?A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional. Q5. How to proceed an order?A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production. Q6. Is it acceptable to print my logo on the product?A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample. Q7: Do you offer guarantee for the products?A: Yes, we offer one-year warranty for our products. Q8: How to deal with the flaw?A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%Contact usPlease do not hesitate to contact me if you need any further informationWhatsapp/Tel/Wechat: 8619902906050Web: Address: Room 303 Building 2,Youpin Cultural and Creative Park,Zhangkeng,Minzhi Street,Longhua District,518131,Shenzhen,China(Mainland)
>>
