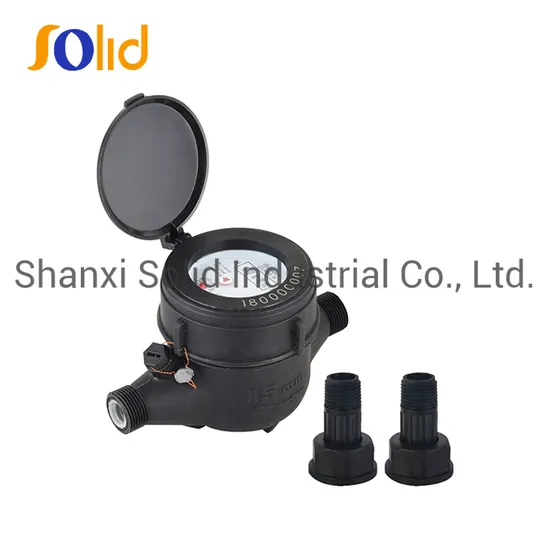

Size15-50mm Multi Jet Dry Type Black Plastic Body Cold Water Meters

Product Description

Multi-jet, Dry dial
Body material: Nylon Plastic
Sizes: DN15 to 50mm( 1/2" - 2"), available for cold water (40°C)
Accuracy: ISO4064, Class B standard
Easy for interchange & maintenance
MAIN TECHNICAL DATA

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		1/h		m3
15	A	3	1.5	150	60	0.0001	99999
	B			120	30
20	A	5	2.5	250	100	0.0001	99999
	B			200	50
25	A	7	3.5	350	140	0.0001	99999
	B			280	70
32	A	12	6.0	600	240	0.0001	99999
	B			480	120
40	A	20	10	1000	400	0.001	99999
	B			800	200
50	A	30	15	4500	1200	0.001	99999
	B			3000	450
