Basic Info.
Spindle Layout
Horizontal
Spindle Number
Single-Spindle
Feed Mode
Hydraulic Feeding
Controlling Mode
Artificial
Certification
CE, ISO, SGS
After-sales Service
Free Spare Parts,Video Technical Support,Online
Applicable Industries
Farms, Forest, Other
Key Selling Points
High Productivity
Feeding System
Hydraulic Feed
Chipper Housing Opening
10½" X 14"
Discharge Hood Height
84``
Video Outgoing-Inspection
Provided
Flywheel Weight
460 Lbs.(209kg)
Transport Package
Iron Frame Packing or Wooden Packing
Specification
79"L x 78"W x 99"H
Production Capacity
5, 000 Unit/Units Per Year
Product Description
Product Description

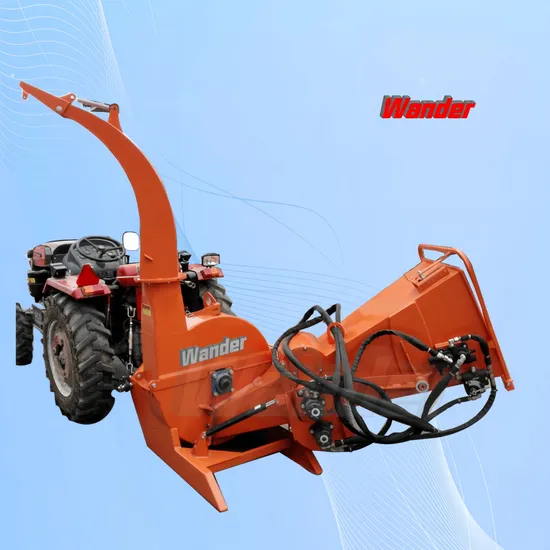

BX series wood chipper is driven by tractor PTO,is one of the most simple and
lowest maintenance on the market.
Includeing BX42S/BX42R ,BX52RH,BX62S/BX62R,BX72R,and BX92R which is
divided into self feeding and hydraulic feeding system.
The small chips made by the wood chipper can be used for animal bedding, for
the forestry and soil protecting, for new energy making, for compost and
for charcoal.
Feature:
1, 3PL wood chipper, driven by Ttractor PTO match the tractor from 15HP to 120HP
2, Cutting diameter size 1cm-25cm, up to 10 inch
3, 8-9CBM/hour cutting capacity
4, Discharge hood can rotate in 360 degrees
5, Feeding system: mechanical roller feeding or hydraulic motor feeding optional
7, CE approved,reliable quality
8, Easy disassembly for inspection Product Parameters
A self-contained powered hydraulic system control fed for continuous chipping at maximum capacity.
And gives stable working to the machine,eliminating the hot problem of the hydraulic oil from tractor.
Using the hydraulic feed model there is less preparation work cutting branches to feed as the duel barrel feed rollers will drag the branches in and this is a great help when chipping the heads of tree.
The fred pto chipper gains complete access to the rotor for servicing by removing one bolt and the top
half of the housing opens foor easy access,the hopper can also tbe fully opened by removing only 2
bolts and nuts.
| Technical details of BX series Wood Chipper |
| Model | BX42R | BX62R | BX92R |
| Drive System | Direct PTO drive |
| HP requirements | 30-80 HP | 40-120 HP | 60-150 HP |
| Chipper Capacity | 4"~6"(100mm~150mm) | 6"~8"(150mm~200mm) | 8"~10"(200mm~250mm) |
| Chipper Housing Opening | 4"x10" (102mm x 254mm) | 6½" x 12" (165mm x 305mm) | 10½" x 14" (267mm x 356mm) |
| Rotor Size | 25" (635mm) | 30" (762mm) | 36" (914mm) |
| Option Hydraulic Fuel Tank | 20L(Oil into tank 17~18L) |
| Hydraulic Pump Displacement | 16L/min |
| Cutting Knife Leght | 10"(240mm) | 12"(290mm) | 13"(320mm) |
| Dise Diameter | 25"(630mm) | 29"(740mm) | 37"(940mm) |
| Flywheel Weight | 210 lbs.(95kg) | 270 lbs(120kg) | 460 lbs.(209kg) |
| Feeding System Feed | Hydraulic Feed |
| Overall Size | 61"L x 71"W x 71"H
(1560mm x 1800mm x 1800mm) | 83"L x 66"W x 83"H
(2100mm x 1680mm x 2100mm) | 79"L x 78"W x 99"H
(2000mm x 1980mm x 2520mm) |
| Packing Size | one pcs 45"L x 32"W x 76"H
(1140mm x 810mm x 1920mm)
two pcs 50"L x 33"W x 96"H
(1270mm x 850mm x 2440mm) | one pcs 48"L x 36"W x 76"H
(1220mm x 910mm x 1930mm)
two pcs 56"L x 42"W x 99"H
(1420mm x 1060mm x 2520mm) | one pcs 48"L x 45"W x 79"H
(1210mm x 1130mm x 2000mm)
two pcs 64"L x 45"W x 99"H
(1620mm x 1130mm x 2520mm) |
| Hopper Opening | 20" x 20" (508mm x 508mm) | 25" x 25" (620mm x 620mm) | 25" x 25" (620mm x 620mm) |
| Discharge Hood Height | 60" (1524mm) | 74" (1880mm) | 84" (2134mm) |
| Weight | 904lbs(410kg) | 1323lbs(600kg) | 1763lbs(800kg) |
| Container capacity | 44pcs per 40FT | 32pcs per 40FT | 28pcs per 40FT |
Detailed Photos
| Technical details of BX series Wood Chipper |
| Model | BX42R | BX62R | BX92R |
| Drive System | Direct PTO drive |
| HP requirements | 30-80 HP | 40-120 HP | 60-150 HP |
| Chipper Capacity | 4"~6"(100mm~150mm) | 6"~8"(150mm~200mm) | 8"~10"(200mm~250mm) |
| Chipper Housing Opening | 4"x10" (102mm x 254mm) | 6½" x 12" (165mm x 305mm) | 10½" x 14" (267mm x 356mm) |
| Rotor Size | 25" (635mm) | 30" (762mm) | 36" (914mm) |
| Option Hydraulic Fuel Tank | 20L(Oil into tank 17~18L) |
| Hydraulic Pump Displacement | 16L/min |
| Cutting Knife Leght | 10"(240mm) | 12"(290mm) | 13"(320mm) |
| Dise Diameter | 25"(630mm) | 29"(740mm) | 37"(940mm) |
| Flywheel Weight | 210 lbs.(95kg) | 270 lbs(120kg) | 460 lbs.(209kg) |
| Feeding System Feed | Hydraulic Feed |
| Overall Size | 61"L x 71"W x 71"H
(1560mm x 1800mm x 1800mm) | 83"L x 66"W x 83"H
(2100mm x 1680mm x 2100mm) | 79"L x 78"W x 99"H
(2000mm x 1980mm x 2520mm) |
| Packing Size | one pcs 45"L x 32"W x 76"H
(1140mm x 810mm x 1920mm)
two pcs 50"L x 33"W x 96"H
(1270mm x 850mm x 2440mm) | one pcs 48"L x 36"W x 76"H
(1220mm x 910mm x 1930mm)
two pcs 56"L x 42"W x 99"H
(1420mm x 1060mm x 2520mm) | one pcs 48"L x 45"W x 79"H
(1210mm x 1130mm x 2000mm)
two pcs 64"L x 45"W x 99"H
(1620mm x 1130mm x 2520mm) |
| Hopper Opening | 20" x 20" (508mm x 508mm) | 25" x 25" (620mm x 620mm) | 25" x 25" (620mm x 620mm) |
| Discharge Hood Height | 60" (1524mm) | 74" (1880mm) | 84" (2134mm) |
| Weight | 904lbs(410kg) | 1323lbs(600kg) | 1763lbs(800kg) |
| Container capacity | 44pcs per 40FT | 32pcs per 40FT | 28pcs per 40FT |
Packaging & Shipping
Packaging & Delivery
Selling Units: Single item
Single package size: 79"L x 78"W x 99"H (2000mm x 1980mm x 2520mm)
Single gross weight: 1763lbs(800kg)
Package Type:
Iron frame packing or Wooden packing.
For one sample 48"L x 45"W x 79"H (1210mm x 1130mm x 2000mm)
iron frame package with film dustcover.
For container then 2pcs in one 64"L x 45"W x 99"H (1620mm x 1130mm x 2520mm)
iron frame package with film dustcover.
