US$2,000.00-30,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Controlling Mode
Electric Control System
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Ink, Paint, Pigment
Certification
CE, RoHS, ISO 9001
Function
Wet Grinding/ Milling
Grinding Medium
Zirconia Beads
Applicable Industry
Coating, Paint, Ink, Pigment, Latex
Bead Materials
Stainless Steel or Pure Zirconia
Material
Hard Alloy/Ss/304/316L/Ceramic
Performance
Nano&Micron Grinding
Cooling System
Circulating Liquid Cooling
Self-Protection
Auto-Stop Function
Transport Package
Wooden Case
Specification
EDW-5L----EDW-100L
Product Description

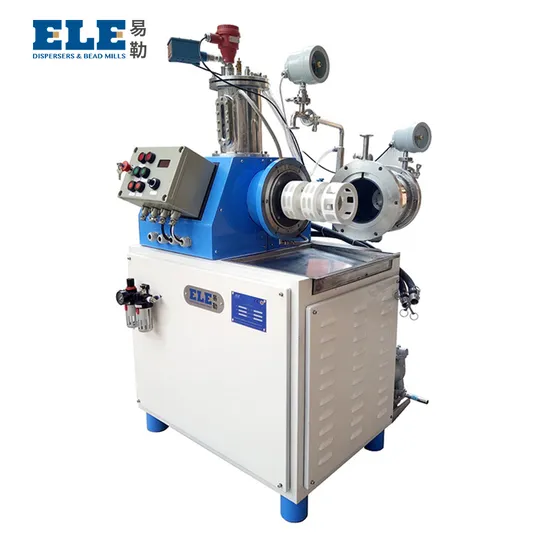

Horizontal Bead Mill:
| Model No. | Chamber Volume(L) | Motor Power(KW) | Flow(L/H) | Dimension(mm) | Weight(kgs) |
| EBW-5 | 5 | 7.5 | 50-200 | 1200X900X1550 | 400 |
| EBW-20 | 20 | 22 | 100-300 | 1850X1050X1750 | 900 |
| EBW-30 | 30 | 30 | 200-500 | 2100X1100X1900 | 1200 |
| EBW-50 | 50 | 45 | 300-800 | 2300X1350X1700 | 1800 |
| EBW-100 | 100 | 55 | 500-1500 | 2500X1400X1800 | 2500 |
| EBW-200 | 200 | 90 | 1000-2500 | 4500X1550X1900 | 3500 |
| Model | Volume Of Grinding Tank(L) | Power(KW) | Rotation Speed (rpm) | Capacity(L/H) | Dimension(mm) | Weight(KG) |
| EDW-5 | 5 | 11 | 0-1500 | 200 | 1300*1050*450 | 400 |
| EDW-10 | 15 | 22 | 0-1200 | 300 | 1600*1450*650 | 600 |
| EDW-15 | 20 | 37 | 0-1200 | 500 | 1600*1450*650 | 1200 |
| EDW-30 | 30 | 55 | 0-1000 | 1500 | 1650*1550*750 | 2200 |
| EDW-50 | 50 | 75 | 0-860 | 2000 | 1900*1850*850 | 2800 |
| EDW-100 | 100 | 110 | 0-860 | 3000 | 2300*2150*950 | 3800 |
| Model No. | Chamber Volume(L) | Motor Power(KW) | Speed(rpm) | Flow(L/H) | Dimension(mm) | Weight(kgs) |
| ENW-1.0 | 1 | 4 | 0-3000 | 2-30 | 1200X900X1400 | 260 |
| ENW-5 | 5 | 11 | 0-1500 | 30-200 | 1100X850X1600 | 400 |
| ENW-10 | 10 | 22 | 0-1200 | 50-300 | 1400X1100X1750 | 700 |
| ENW-15 | 15 | 37 | 0-1200 | 100-500 | 1550X1100X1800 | 1300 |
| ENW-30 | 30 | 55 | 0-1000 | 200-1000 | 1850X1300X1700 | 2200 |
| ENW-50 | 50 | 75 | 0-860 | 500-2000 | 2200X1500X1800 | 2800 |
Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. German double mechanical end face seal, which can bear more than 10bar pressure.
4. Corrugated cooling system increase cooling area and improve cooling efficiency.
5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.
6. Meet demands of continuous production&different viscosity& fineness.
7. Inner & outer double pins improve high wet grinding/milling efficiency.
8. Ex-proof (optional) & fault alarming.
