Product Details
Product Description
Product Description

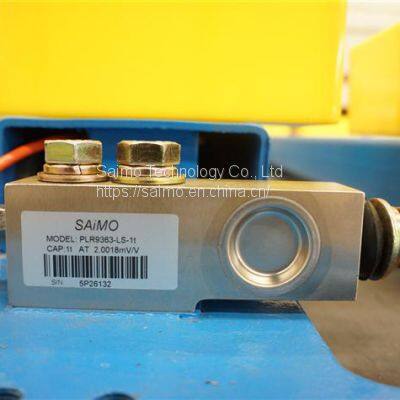

One end fixed, one end loaded, sealed well;;
Automatically adjusted by the force of the heart, simple to install, easy to use, good interchangeability;
It can be used for the production of ultra-thin electronic truck scale, monorail crane scale, hopper scales, etc. .
Range
50,100,200,300,500 kg; 1,2,3,5,10,15,20 t
cantilever weighing sensor technology parameters
Rated load
| 0.05 to 20t
|
Comprehensive accuracy
| 0.02 0.03 (linear + lag + repeatability)
|
Sensitivity
| 2.0 mV / V
|
Creep
| ± 0.02% F · S / 30min
|
Zero output
| ± 1% F · S
|
Zero temperature effect
| ± 0.02% F · S / 10 ℃
|
Output temperature
| ± 0.02% F · S / 10 ℃
|
Operating temperature
| -20 ° C to + 65 ° C
|
Input resistance
| 380 ± 10 Ω
|
Output impedance
| 350 ± 3 Ω
|
Insulation resistance
| > 5000 MΩ
|
Safety overload
| 150% F · S
|
For the bridge voltage
| Recommended 10VDC
|
Material
| Alloy steel or stainless steel
|
Wiring
| Input (+): Red line input (-): Black line
|
Output (+): Green line output (-): White line
|
Signal amplifier wiring
| Power: Red Common: Green Output: Yellow
|
Saimo Technology Co., Ltd
2# Luoshan Road, Xuzhou Economic Zone,
Jiangsu province, P.R of China
Mobile: 18061139050
wechat:396914510
Website：
Email: zouli@saimogroup.com
>>
