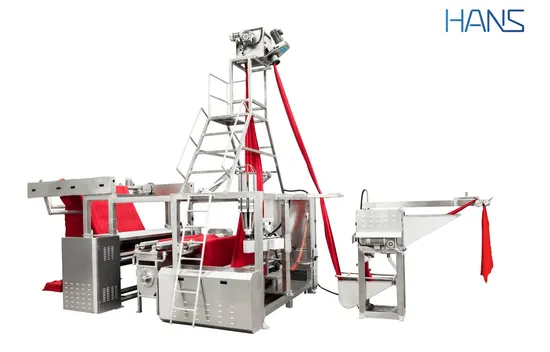

Tubular Processing Compactor Rope Opener Slitting Machine

Product Description

Tubular processing compactor rope opener slitting machine
Features:
- The slitting line major used for slitting and opening of knitted and woven fabrics, both tubular and open width form fabrics
- Automatic rope detwisting made by stainless steel, mounted on a fixed tubular flatform
- High automation grade with PLC and inverter system
- High efficiency washing tank after slitting basket
- Fully automatic grade slitting basket
- Can be used for long pile towel fulffy washing process
- Single padder or double padder for dewatering or chemical permeation
- Automatic rotary filtering devecie
- Low tension washing effect
- English version operation system
- Complete finishing line, which place before stenter finishing machine
Specification

Model	HSL-2600
Pre squeezer unit	With small J scray device for fabric storage
Max. working width	2400mm
Speed	100m/min
Slitting basket	E+L
Machine body	Stainless steel 304
Washing tank	Single tank or double washing tank
Automatic filtering device	Rotary filtering
Padder	High efficieny padder
Touch Screen Controller	All production data can be controlled by touch screen controller

Main Flow Chart:
Pre squeezer unit → Rope opener → Slitting device → Centering unit → Tension sensor → Washing tank → Padder → Plaiter
Machine Layout :

---
