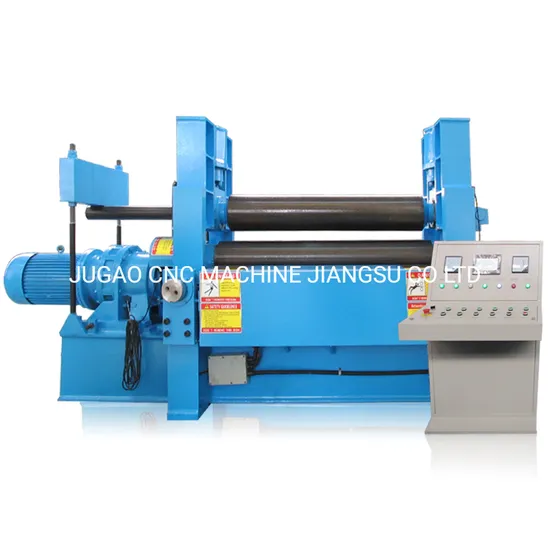

Universal 3 Roller Iron Metal Steel Plate Bending Rolling Machine

Product Description

Universal 3 roller iron metal steel plate bending rolling machine Keywords:bending roll machine,cnc plate bending machinery,cnc rolling machine,hydraulic rolling machine,metal rolling machine,plate bending machinery,plate bending roll,plate rolling machine,roll bending machine,roll bending machine,sheet rolling machine
This model device adopts the Japanese technology. It can roll plate to cylinder, cone, U-shape and so on. The up roller of this device can do up and down, right and left move. And all the move actions can show by figure.It with the pre-bending capacity.

1, Superior product accuracy.
2. The unique bending technology, high-accuracy end pre-bending, continuous bending without posterior hom, bending process digital control.
3, Man-machine dialogue control interface, and efficient intelligence operation.
4, Physical bending process software, human-machine dialog window, bending the process of automatic compensation.
5, Single-operation, safe and convenient and efficient.
6, Rich curved-shape, with a rolling O-,U-type,multi-stage R different shapes.
7, Multi-model choice, based on usage or user requirements, with the economy the number of significant models, TNC numerical model selection.
Product parameters

Model	Pressure	Max bending thickness		Max rolling	Upper roller	Down roller	Rollers	Motor
	(Ton)	(mm)		length	diameter	diameter	distance	kw
		Pre-bending	Max bending	mm	mm	mm	mm	Driving	Hydraulic	Moving
		mm	mm
6x1500	25	4.8	6	1500	175	125	160	3	2.2	0.75
6x2000	25	4.8	6	2000	195	125	160	3	2.2	0.75
6x2500	25	4.8	6	2500	205	135	180	3	2.2	0.75
6x3000	37	4.8	6	3000	215	135	180	4	2.2	0.75
8x1500	25	6.4	8	1500	175	125	160	3	2.2	0.75
8x2000	25	6.4	8	2000	195	125	160	3	2.2	0.75
8x2500	37	6.4	8	2500	205	135	180	4	2.2	0.75
8x3000	45	6.4	8	3000	215	135	180	4	2.2	0.75
10x1500	37	8	10	1500	205	135	180	4	2.2	0.75
10x2000	45	8	10	2000	215	135	180	4	2.2	0.75
10x2500	45	8	10	2500	235	135	180	4	2.2	0.75
10x3000	65	8	10	3000	245	135	180	5.5	4	0.75
10x4000	75	8	10	4000	255	150	245	7.5	4	1.1
12x2000	65	9.6	12	2000	250	145	200	5.5	4	0.75
12x2500	65	9.6	12	2500	255	150	245	5.5	4	0.75
12x3000	75	9.6	12	3000	270	150	245	7.5	4	1.1
12x6000	100	9.6	12	6000	290	150	245	15	5.5	1.5
16x2000	75	12.8	16	2000	255	150	245	7.5	4	1.1
16x2500	100	12.8	16	2500	270	150	245	15	5.5	1.5
