| US$10,000.00-150,000.00 | 1 Piece (MOQ) |
| Model Item | FANUC 0i-MF |

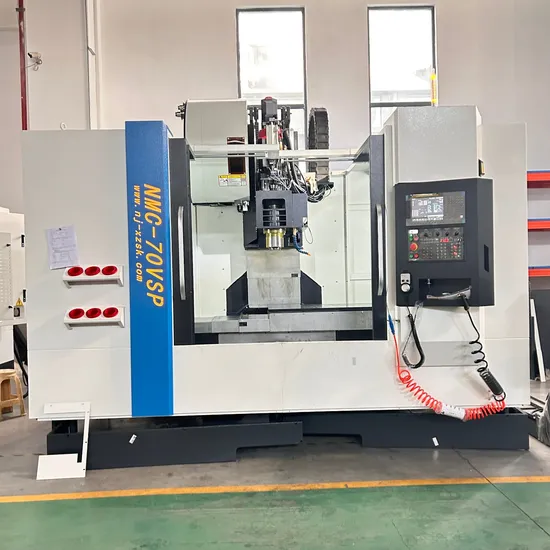

| NMC-70VSP | |
| Workable size(L*W) mm | 1400*700 |
| T-slot(No.-W×D)mm | 5-18*150 |
| Max. Worktable loading kg | 1200 |
| The dis. From Spindle center to Beam guideway mm | 795 |
| The plane dis. From spindle end to worktable mm | BT40:180-910 BT50:145-875 |
| X/Y /Z axis travelling mm | 1300/700/730 |
| X/Y/Z guideway type | Linear Rolling Guide |
| X/Y/Z fast move speed m/min | 24/24/24 |
| Cutting feed speed range mm/min | 10000 |
| X/Y/Z servo motor Power kW | 3/3/3 |
| Spindle motor power kW | 11/15kW |
| Max speed of spindle r/min | 8000/6000 |
| Tool magazine capacity/form | 24 |
| Shank form | BT50 |
| Max weight of tool kg | 8/15 |
| Max diameter/length of tool mm | Ø80,Ø110/250 Neighbor knife Ø120,Ø160/350 No Neighbor Knife |
| Exchange tool time(Tool to Tool) Sec | 2/4 |
| Exchange tool type | Side-mounted mechanical arm |
| X/Y/Z axis position accuracy mm | ±0.006 |
| X/Y/Z axis repeat position accuracy mm | ±0.003 |
| Air pressure kg/cm | 6~8 |
| Electricity demand kVA | 30 |
| Machine size(L×W*H) mm | 3729*2435*3020 |
| Machine weight kg | 9000 |
| 1 | 24 disc tool magazines | 5 | Working light | 9 | Electric cabinet heat exchanger | 13 | Foundation screws and pads |
| 2 | Workpiece Cooling System | 6 | Tri-color warning light | 10 | Network transmission and CF card function | 14 | Tools and Toolboxes |
| 3 | Automatic lubrication system | 7 | cleaning air gun | 11 | Rigid tapping | 15 | Iron chipping disc and chip storage box |
| 4 | Spindle blowing device | 8 | Spindle output water | 12 | Fully enclosed protective cover | 16 | Portable chip blowing air gun |
| 1 | 24 disc tool magazines | 9 | Electric cabinet heat exchanger |
| 2 | Workpiece Cooling System | 10 | Network transmission and CF card function |
| 3 | Automatic lubrication system | 11 | Rigid tapping |
| 4 | Spindle blowing device | 12 | Fully enclosed protective cover |
| 5 | Working light | 13 | Foundation screws and pads |
| 6 | Tri-color warning light | 14 | Tools and Toolboxes |
| 7 | cleaning air gun | 15 | Iron chipping disc and chip storage box |
| 8 | Spindle output water | 16 | Portable chip blowing air gun |
| Q1 A1 | How can I choose the most suitable machines ? If you are the factory, please tell me your specifications request or our workpiece drawing, our professional engineer team will suggest the suitable model for you. If you are the trading company, you can tell us your customer's request or we will suggest you our best selling model for you. |
| Q2 A2 | Where is our factory located? How can I visit there? Our factory is located in NanJing City, JiangSu Province, China. You are warmly welcomed to visit us. We can send the invitation letter to you and pick up you from Nanjing Airport to our factory. |
| Q3 A3 | How is the warranty? We will supply standard ports and accessories with our machine when shipment. Within one year after receiving our machines, in the right operation, if there are any damaged parts or accessories, we will replace them by air or express immediately free of charge. |
| Q4 A4 | Do you have a stock? Our Chinese market order is very good, we have many machines produce everyday and delivery everyday. Our fastest delivery time for 1~5 sets will be within one month. |
| Q5 A5 | How about your quality? We have approved the ISO9001:2008 Quality management system. ISO14001 Environmental management system. Most products have been approved by the European and American safety standards, including CE,GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services. |
| Q6 A6 | Do you have professional engineers? Yeah, we have professional engineers and designers, We can provide OEM services. The most important development part is our technical and quality. |
| Q7 A7 | What is the package? Machine is by waterproof cloth to covered. And e packed by standard exported wooden case with steel foot. It is very much strong for oversea transportation. |
| Q8 A8 | What's your main products of your company? We specialized in all kinds of machines ,such as Vertical Machining Center, Horizontal Machining Center, 5 axis Machining Center, Gantry Machining Center, CNC Vertical Chuck Turning Machine, Boring and Milling Machine and Custom Machine Tool . |
| Q9 A9 | What's the MOQ? One set. The big discount will start from three sets. |
| Q10 A10 | What's the Payment Terms ? T/T,30% initial payment when order,70% balance payment before shipment; Irrevocable LC. Other way can discuss according to different situation. |
| Q11 A11 | What is the charge of installing and commissioning? Most of machines you can install well according to our drawing. For some machines, it need our technician to go to your local site and help you install and commission machines. At the same time, our technician will train your workers, it will table about 7~15days for different machines. The return air-tickets, accommodation, food, salary (USD100.00/day for each technician), etc will be born by the end-user. |
