High-Tech Hqt150L Bed Lathe Cutting Machine Manufacturer CNC Lathe Machine

Product Description

Product Description

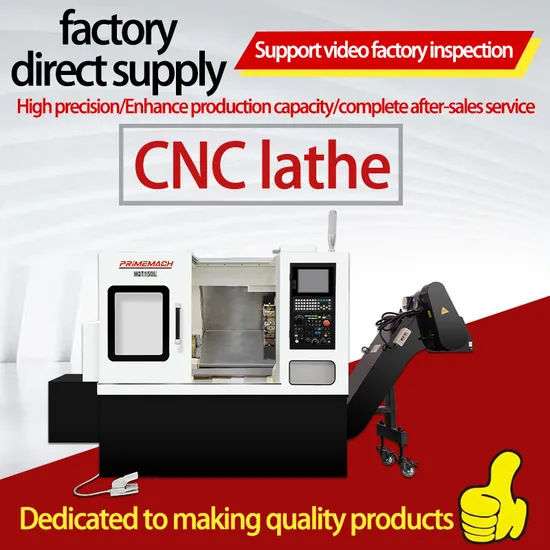

HQT150L CNC Lathe Machine
The bed is made of high-strength cast iron, which is aged treatment to effectively eliminate internal stress and ensure long-term stability and accuracy. Its structure design is in line with the ergonomic principle, the operation space is spacious, convenient for workers to load and unload workpieces, replace tools and other operations, and has good chip removal performance, the large slope chip removal groove at the bottom of the bed can make the chips slide quickly, avoid accumulation affecting the processing.
Detail
The spindle is made of high performance alloy steel, which is processed by precision grinding and dynamic balance correction to ensure the stability of high-speed rotation
The feed system is composed of a high-precision ball screw pair and a servo motor. The ball screw pair has the characteristics of high transmission efficiency and high precision, and can accurately convert the rotating motion of the servo motor into the linear motion of the table
The servo motor has a fast response speed and can adjust the feed speed quickly according to the instructions of the CNC system to achieve high-speed and high-precision cutting feed. At the same time, the feed system has overload protection function, when the cutting force is too large, automatic stop protection to prevent damage to the machine parts.

Model number	HQT150
CNC control system	SYNTEC22TA
Maximum turning diameter	ø 500 MM
Maximum machining diameter * Length width	ø 330×350 MM
Spindle through hole diameter	ø 62 MM
Maximum bar material machining diameter	ø 52 MM
Maximum support quality	200 KGF
Maximum spindle speed	4500 RPM
Spindle end form	A2-6 KSA
Main axis CS indexing	(360°) 0.001° DEG
X axis maximum travel	190 MM
Maximum z-axis travel	370 MM
X axis fast moving speed	30 M/MIN
Z-axis fast moving speed	36 M/MIN
X-axis positioning accuracy	±0.004 MM
Z-axis positioning accuracy	±0.004 MM
X axis repeated positioning accuracy	±0.002 MM
Z-axis repeated positioning accuracy	±0.002 MM
Number of tools installed on the tower	8/12 EA
Knife tower change time	0.2 SEC
Inside diameter Maximum diameter of tool bar	ø40/ø32 MM
Outside diameter tool bar height	25*25/20*20 MM
Inside diameter Maximum diameter of tool bar	ø40/ø32 MM
Spindle motor	11/15 KW
X-axis machine	2.4 KW
Z-axis machine	2.4 KW
Total machine power	20 KW
Cooling tank capacity	150 L
Oil lubrication unit capacity	1.8 L
Machine height	1770 MM
Floor area (length * width)	2120*1600 MM
Gross machine weight	3500 KG

Company Profile
Anhui Primacon Intelligent Equipment Co., Ltd. is an Anhui Province SMEs and a national high-tech enterprise. Located in the beautiful city of Tongling, Anhui Province, the company focuses on the research, development, production and sales of multi-axis CNC lathes and machining centers. Introducing advanced technology from Germany and Japan, is committed to improving the quality of machine tools and high level of application, and we also offer automation integration services. Our products are mainly used in fields such as automotive manufacturing, aerospace, mold manufacturing, engineering machinery, and general equipment industry.
The company's main products:
1.High precision CNC lathe HQT series, QTE series; 2.High-precision turning and milling composite series; 3.Vertical, Horizontal, Gantry Machining Center series. We always adhere to the breakthrough innovation, deep plowing expertise, continue to strive forward!
Exhibition
Our Advantages
Certifications
Packaging & Shipping
FAQ
Q: What machining functions do your machining centers support?
A: Our machining centers support drilling, tapping, milling, boring, and turning functions, with multi-axis options (such as 3-axis, 4-axis, and 5-axis) to meet the needs of complex workpiece machining.
Q: What is the precision of your CNC lathes?
A: The machining precision of our CNC lathes typically ranges from 0.001mm to 0.003mm. Depending on the model, higher precision can be customized upon request.
Q: Can the machines be customized according to customer requirements?
A: Absolutely! We support customization of machining range, spindle power, automation level, and fixture and tooling configurations to meet your production needs.
Q: Can you provide automation solutions?
A: Yes, we can provide automation solutions, including automatic feeding systems, robotic arms, and production line integration.
Q: What does your after-sales service cover?
A: Our after-sales service includes providing detailed operation manuals, instructional videos, and remote technical support to help customers quickly learn how to operate the equipment. Additionally, we maintain dedicated service records for each customer to monitor equipment performance and ensure long-term stability. We also supply spare parts and respond promptly to customer inquiries and needs to ensure proper equipment functioning.
Q: What should I do if the machine breaks down?
A: If the machine breaks down, you can contact our after-sales team at any time. We offer remote video diagnosis, phone guidance, and, if necessary, dispatch engineers for on-site repairs.
Q: How long is the delivery time?
A: Standard models usually require 30-45 days for delivery. For customized models, the delivery time may take 60 days or longer, depending on the complexity. The exact delivery time will be confirmed with the order.
Q: How are the machines packaged and transported?
A: Our machines are packaged with waterproof and rustproof materials, reinforced with sturdy wooden crates, suitable for sea and long-distance transportation to ensure the products arrive at your specified location in perfect condition.
Q: What payment methods do you accept?
A: We accept various payment methods, including T/T bank transfers and Letters of Credit (L/C). Please contact us if you have other requirements.
Q: Do you have export experience?
A: Yes, we have been exporting machines to many countries worldwide for years and are familiar with export procedures, including customs declaration, clearance, and providing relevant certificates such as CO, invoices, and packing lists.

---
