Households Products Making Machine Bottles Blow Molding Machine

Product Description

Company Profile

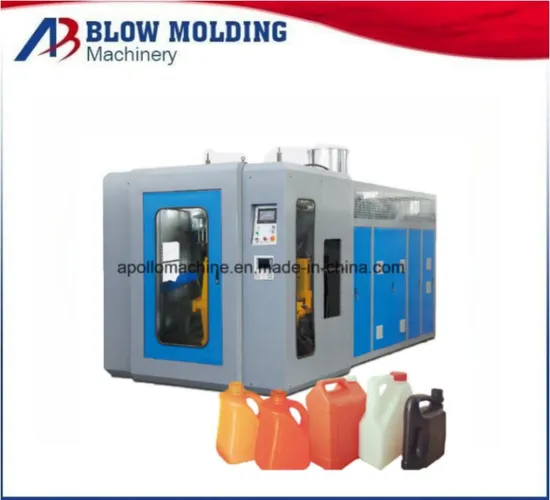

100ml~2L households products making machine
ABLB55 full automatic stretch extrusion blow molding machine was specially designed for plastic suction tube. Process of the manufacture can be divided into three parts: First, extrusion plastic, second, Stretch the hot tubel, the third step is blowing and forming in the mold. Advisable design plus perfect craft will guide you to get the perfect suction tubes.
The features of this machine:
(1)It is suitable for producing PP, PE, PVC and plastic containers and bottles in all shapes, the max. Product volume is up to 2L.
(2)It is mainly designed for small plastic products and plastic tube, especially for plastic suction tube.
(3)Feeding system carries performance automatically through a suction feeder. It can save the labor cost for you. One worker can look after 5 sets at the same time.
(4)Fully automatic process with low investment, high efficiency, quick and safe operation, easy for trouble-shooting and maintenance.
Technical Parameters: ( ABLB55I-2)
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume1L
Output capacity250~300 pcs/h
Size2.8×2.1×2.5(M)
Weight4.5T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw55mm,L/D ratio 24, 38CrMoALA Cooling system available
Plasticization60Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power5KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ) 11kw
Cooling Fan3-4 zone Automatic cooling


Extrusion systemSummarizeHigh-grade alloy steel, center feeding
Die head number2
Center distance of die heads 130
Max die mouth140mm
Heating zone3-4 Stainless steel heating cycle
Heating power2~4KW
Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force56KN
Template distance80~350mm
Max mould size290X320mm
Mould materialHigh grade 50# steel
Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)Japanese Mitsubishi PLC
system
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature controlAutomatic temperature control module
Movement controlJapanese Mitsubishi, Chinese/English
Version
Electric protectionAmpere overload, electric short circuit self-protection function
Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
Oil pump motorThree phase asynchronous motor (380V,50HZ) 5.5kw
Oil pumpImported double pump
ValvesImported oil pump valves and connections
Oil pipesDouble layer overpressure resistant
System pressure60Kg/cm²
Cooling systemSeparate water cooling cycle, oil cooler cooling system
Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
Air pressure0.6Mpa
Air displacement0.6M3/min
Electromagnetic valve AIRTAC
Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
Cooling mediumWater
Water flow50L/min
Water pressure0.3-0.6MPa
The main components of the machine. ( ABLB55I-2 )
electronic parts
NameTrader
Micro computer control systemJapanese MITSUBISHI
Temperature ControllerJapanese MITSUBISHI
Auxiliary RelayOMRON
contactorSchneider from France
Electric motorSIEMENS MOTOR
Power SourceTAIWAN MEANWELL
InverterDELTA
hydraulic parts
NameTrader
Oil pumpTAIWAN HIGH-TECH
ValveJAPAN YUKEN
Oil pump and connectionJAPAN YUKEN
Sealed partHALLITE
air control system
NameTrader
CylinderAIRTAC
Air ValveAIRTAC Product Parameters

Max. Product volume	2L
Out put capacity	5 00~600 pc s /h
Screw diameter	45 mm
Screw L/D ratio	24:1 L/D
Screw drive power	10 KW
Screw heating capacity	2.6 KW
No.of heating zone	3 zones
Output of HDPE	35 KG/H
Oil pump drive power	4.8 KW
Clamping force	32 KN
Max.size of mold	80-350 mm
Mold stroke	250 X 320 mm
Max.die diameter	80 mm
Blowing pressure	0.6 mpa
Air Volume	0.4 M³/MIN
Cooling water pressure	0.3mpa
Water consumption	30 L/MIN
Size of Machine	2.6x1.4x2.2m
Weight of machine	2.8 ton

The main components of the machine:

electronic parts
Name	Trader
Micro computer control system	Japanese MITSUBISHI
Temperature Controller	TAIWAN YANHUA PID
Auxiliary Relay	OMRON
Electric motor	Three phase 220V or 380V
Power Source	TAIWAN MEANWELL
Transducer	TAIDA FROM CHINA
hydraulic parts
Name	Trader
Oil pump	TAIWAN HIGH-TECH
Valve	JAPAN YUKEN
Oil pump and connection	JAPAN YUKEN
Sealed part	HALLITE
air control system
Name	Trader
Cylinder	AIRTAC

Detailed Photos
After Sales Service
FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.

---
