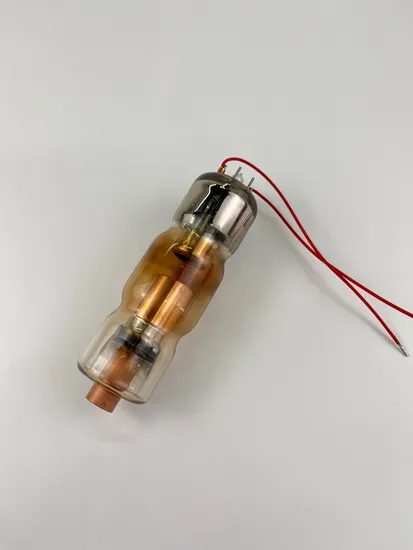

Dental X Ray Tube for Panoramic Dental X-ray Unit Toshiba D-054

Product Description

Product Description
Quick Detail:
Type:Station anode x-ray tube
Application: For panoramic dental x-ray unit
Model: KL54-0.5-100
Equivalent to TOSHIBA D-054
Integrated high quality glass tube
Description:
KL54-0.5-100 Stationary anode X-Ray Tube is especially designed for panoramic dental x-ray unit and available for a nominal tube voltage 105kV with single-phase full-wave rectified or DC circuit
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. The high anode heat storage capacity ensures a wide range of applications for panoramic dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.
Specifications:

Nominal Tube Voltage(self-rectified)	100kV
Nominal Inverse Voltage	110kV
Nominal Input Power(at 1.0s)	1750W
Max. Anode Cooling Rate	250W
Max. Anode Heat Content	35kJ
Filament Characteristics	Ifmax3.6A,4.2±0.5V
Nominal Focal Spot	0.5 (IEC60336/2005)
Effective X-ray Cone Beam
Target Material	Tungsten
Cathode type	W filament
Permanent Filtration	Min. 0.6mmAl/75 kV(IEC60522/1999)
Dimensions	138mm length by 45mm diameter
Weight.	320 grams

Competitive Advantage:
Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime
The tube KL54-0.5-100 can be used on panoramic dental x-ray machine.
For more type of our x-ray tube, please see the following chart:

BRIEF SPEC.OF STATIONARY ANODE X-RAY TUBE
Type	Equivalent	Nominal Focal Spot Value	Max Rating(W)	Max. Voltag(kV)	Max Filament Current(A)	Target Angle ( °)	Anode Heat Content(KJ)	Anode Cooling Rate(W)	Dimension
									Length×Diameter
KL1-0.8-70	CEI OX/70-P	0.8	840	70	2.2	19	7	140	80×30
KL5-0.5-105	CEI OPX/105	0.5	1150(0.1s DC)	105	4	5	30	250	140×42
KL10-0.6/1.8-110	CEI OX110-15	0.6/1.8	880/5200(0.1s DC)	110	3.5/3.5	15	30	250	155×50
KL11-0.4-70	TOSHIBA D-041	0.4	430	70	3	12	4.5	110	67×30
KL20-2.8-105	CEI OX105-6	2.8	6000(0.1s AC)	105	5	19	30	250	145×45
KL21-0.7-70		0.7	N/A	70	3	16	7	210	67×30
KL22-1.8-90	CEI OX90-2	1.8	2200(0.1s AC)	90	4.3	19	25	250	140×42
KL25-0.6/1.5-110	CEI OX110-5	0.6/1.5	800/4000(0.1s DC)	110	4/4.5	12	30	230	135×50
KL27-0.8-70	CEI OX/70-M	0.8	840	70	2.2	19	7	140	72×30
KL32-0.5-80	BRAND X-RAY BX-1	0.5	N/A	95	2.4	12	16	160	125×35
KL54-0.5-100	TOSHIBA D-054	0.5	840/1750(1s,DC)	100	3.5	5	35	250	132×45
XD2-1.4/85		1.5	1400	85	2.5	23	10.2	225	110×35
XD3-3.5/100		2.6	3500	100	4.5	19	35	350	180×50
XD3A-3.5/105X	CEI OX105-4	2.6	3500	105	4.5	19	30	350	175×50
XC65		0.8	600	200	3±0.2	25			195×68
CX6828		0.8	200	160	3.5	25			195×68
CX6838		0.8	320	160	3.5	25			195×68
CX6858		0.8	500	160	3.7	25			195×68

Hot Sales Products
Company Profile
Packaging & Shipping
FAQ1. Are you manufacturer?Yes, we are a professsional manufacturer of x-ray machine in China.Stable quality and foremost service always be the key that we focus on.2. How long is your lead time?Normally it's about 30-40days after order confirmed.3.How about the warranty and services?Provide one year warranty and lifetime technic support.Accept to send our engineer to your country for training in additional cost.Free training one-on-one in our factory for free.4. How long is the guarantee period of the machines? When does it start?The guarantee period of our equipment is one year, calculated the date from when it's installed. During the guarantee period, we provide normal damaged spare parts for free. After the guarantee period, we only take the cost of components.

---
