Fully Automatic Non Woven Bag Making Machines

Product Description

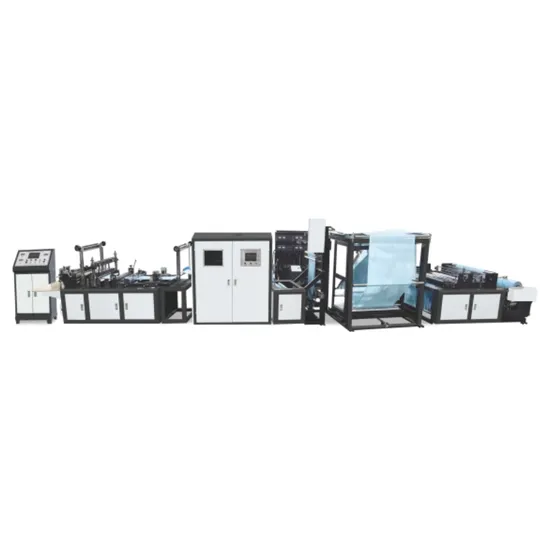

Product Description Name: The newest Manufacturer HBL-DB 700/800 Fully automatic non woven bag making machines
HBL-DB 700/800
Fully automatic non woven shopping bag with handle attached making machine
This newest nonwoven bag making machine is improved.
Advantages:
1. The speed is 160pcs/min, faster than old type machine.
2. The machine is higher reliability, reduced a lot of time for installing.
3. Machine was shortened by 1 m to save space.
4. The appearance of machine is become more artistic.
5. Our engineer can speak English.

Product introduction:
This machine is suitable for non woven fabric material only, it is the most advanced equipment and has the function of full automatic handle loop sealing. The speed is about 20-75 pcs/min, it equals to 5 workers operating 5 handle sealing machines. It can fully automatic make non woven bag products with different bag type and size, as handle attached bags, T-shirt bags (vest bags), flat bags, drawstring bags and so on, except box bags. It has widely used in clothing, footwear, wine, gifts packaging etc. The machine can instead of the traditional hand-sewing and reducing labor and manufacturing costs. It's very popular in worldwide.
Features:
1. This machine adopts Taiwan touch screen computer display, PLC computer program which can be edited.
2. Auto meter counting &stopping, could freely setting number.
3. Computer Fixed-length, printing color mark track orientation, Auto-stop when complete.
4. High voltage static processor, Auto constant temperature heating controller.
5. This machine has the function of automatic punching.
6. Unwinding magnetic powder tension control with manual, Auto side-correction control.
7. This machine adopt ultrasonic welding of all aspects, bag mouth folding welding, side sealing, once full completed, fast speed, easy to operate, firm sealing, beautiful and decent.

This machine is suitable for non-woven fabric material. It can make following bags:
1. Flat Bag (D-cut Bag)
2. T-shirt Bag, Vest Bag (U-cut, W-cut)
3. Handle loop bag
4. Flat Bag with Bottom Folding (stand up bag)

Nonwoven Bag Making Machine Type	HBL-DB700	HBL-DB800
Production Speed	20-160pcs/min	20-160pcs/min
Bag Width	100-800mm	100-800mm
Bag Length	200-580mm	200-680mm
Bag-Making Thickness	30-120g	30-120g
Power Supply	380V/220V	380V/220V
Total Power	16KW	18KW
Overall Dimension (L*W*H)	10m*2m*2.1m	10m*2.2m*2.3m
Weight404	3900KG	4000KG
