High Speed Comb Fiber Autolevelling High Speed Drawing

Product Description

Product Description
This machine is suitable for a wide variety of spinning fiber and output rate is high.
*Output speed of 800 meters per minute; Optical, electric, mechanical, the gas one.
*Switzerland USTER short fragment autoleveling control system.
*The on-line detection, monitoring the quality of the stem.
*Touch screen display, man-machine conversation.
*The user can choose the frequency control to reduce the pullery transform to solve the switch car instantly evenness deterioration.
*The PLC control, digital machine, overhead photoelectric control. Make sure more stable and reliable equipment operation.
*The user can choose compulsory lubrication, to reduce gear wear and be helpful for high speed.
*Automatic scraping cotton device, regular cleaning.
*The user can choose the automatic doffing device to improve production efficiency.
*The use of multiple gap seal, suitable for high speed.
Product Parameters

Delivery number	2 holes
Total drafting multiple	4-14 times
Max output speed	800m/min
Drafting sytle	Five upper and four lower pressure bar dual zone curve drafting
Feeding sliver number	6-8pieces
Suitable fiber length	15-76mm
Feeding tube size(mm)	Dia400mm 500mm 600mm x height 900 or 1100mm
Main frame exterior size(mm)	2500x1500x1750mm
Weight	2400kgs
Main motor power	5.5kw

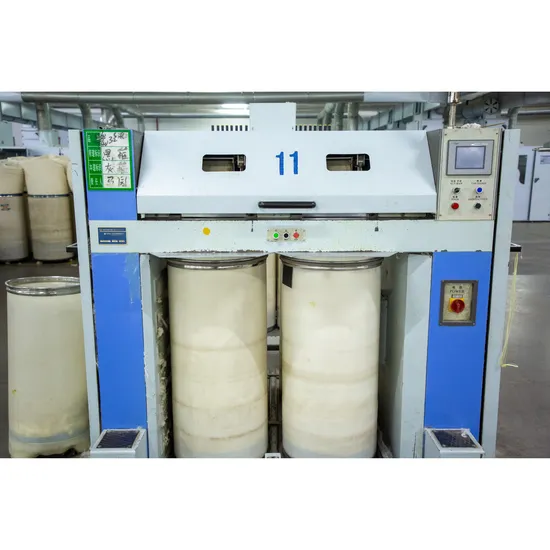

Detailed Photos


*Output speed of 800 meters per minute; Optical, electric, mechanical, the gas one.
*Switzerland USTER short fragment autoleveling control system.
*The on-line detection, monitoring the quality of the stem.
*Touch screen display, man-machine conversation.
*The user can choose the frequency control to reduce the pullery transform to solve the switch car instantly evenness deterioration.
*The PLC control, digital machine, overhead photoelectric control. Make sure more stable and reliable equipment operation.
*The user can choose compulsory lubrication, to reduce gear wear and be helpful for high speed.
*Automatic scraping cotton device, regular cleaning.
*The user can choose the automatic doffing device to improve production efficiency.
*The use of multiple gap seal, suitable for high speed.


FAQ
Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable?
We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: How about the quality?
We have an intelligent manufacturing system.
Q: Are you a manufacturer or Trade Company?
We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service?
1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service:
We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
