Gear Dirven Type Drilling and Milling Machine Zay7032g/Zay7040g/Zay7045g

Product Description

1.Product Description Features
1)Gear-driven type and round column
2) Milling, drilling, boring, reaming 3) Headstock swivels 360 horizontally
4) Micro feed precision
5) Adjustable gibs on table precision.
6)Strong rigidity, powerful cutting and precisely positioning.
2.Specification

Model	ZAY7032G	ZAY7040G	ZAY7045G
Drilling capacity	32mm	40mm	45mm
Face milling capacity	63mm	80mm	80mm
End milling capacity	20mm	32mm	32mm
Distance from spindle nose to table	440mm	440mm	440mm
Min. distance from spindle axis to column	272.5mm	272.5mm	272.5mm
Spindle travel	130mm	130mm	130mm
Spindle taper	M. T. 3 or R8	M. T. 4 or R8	M. T. 4 or R8
Step of spindle speed	6	6	6
Range of spindle speed 50Hz	80-1250 r. p. m	80-1250 r. p. m	80-1250 r. p. m
60Hz	95-1500 r. p. m	95-1500 r. p. m	95-1500 r. p. m
Swivel angle of headstock(horizontally/perpendicularly)	360° /± 90°	360° /± 90°	360° /± 90°
Table size	800× 240mm	800× 240mm	800× 240mm
Forward and backward travel of table	175mm	175mm	175mm
Left and right travel of table	500mm	500mm	500mm
Motor power	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer' s requirement	As customer' s requirement	As customer' s requirement
Net weight/gross weight	315kg/365kg	318kg/368kg	320kg/370kg
Packing size	770× 880× 1160mm	770× 880× 1160mm	770× 880× 1160mm
Loading amount	36pcs/20 ' container	36pcs/20 ' container	36pcs/20 ' container

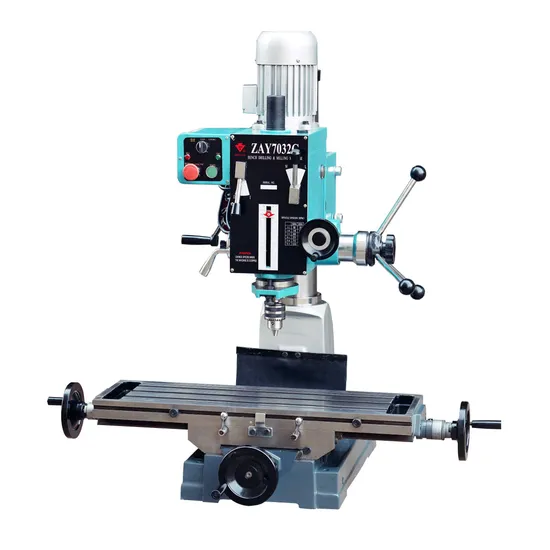

3.Machine Photo
3.Manufacturing Ability
4.We in Fairs

5 OEM APPROVED * LOGO OEM accept.
* Packing design OEM accept
* Even machine design OEM accept.
.
6.Our team Service * Professional team,perfect pre-sale and after-sale service.
* Engineers available to service machinery overseas.
* Good English speakers from sale department,can handle your suggestion

---
