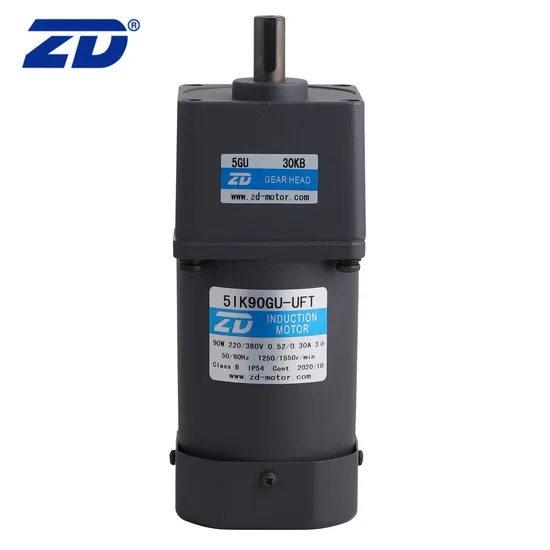

Modern Design 220V Voltage Gear Electronic Reduction Gearbox Synchronous Ac Reversible Motor

Product Description

Model Selection ZD Leader has a wide range of micro motor production lines in the industry, including DC Motor, AC Motor, Brushless Motor, Planetary Gear Motor, Drum Motor, Planetary Gearbox, RV Reducer and Harmonic Gearbox etc. Through technical innovation and customization, we help you create outstanding application systems and provide flexible solutions for various industrial automation situations. • Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
• Drawing Request If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
• On Your Need We can modify standard products or customize them to meet your specific needs. Detailed Photos
Product Parameters
Power: 6W, 10W, 15W, 25W, 40W, 60W, 90W, 100, 120W
Dimension: 60, 70, 80, 90mm
Voltage: 110V, 220V
Frequency: 50Hz, 60Hz
Accessory: Terminal box, theremal protector, pedestal of the motor, fan

Model Type		Output power	Voltage	Frequency	Current	Starting	Rated	Rated
Upper:Pinion Shaft
Below:Round Shaft
Lead Wire Type Dimensiors (1)	Terminal Box Type Dimensions(2)	W	V	Hz	A	mN.m	mN.m	r/min
5IK90GU-AF	5IK90GU-AFT	90	1ph 100	50	1.55	450	700	1250
(5IK90A-AF)	(5IK90A-AFT)			60	1.85		570	1550
5IK90GU-EF	5IK90GU-EFT	90	1ph 110	60	1.4	500	570	1550
(5IK90A-EF )	(5IK90A-EFT)		1ph 120		1.45
5IK90GU-CF	5IK90GU-CFT	90	1ph 220	50	0.72	450	700	1250
(5IK90A-CF)	(5IK90A-CFT)		1ph 230		0.7
5IK90GU-HF	5IK90GU-HFT	90	1ph 220	60	0.71	450	570	1550
(5IK90A-HF )	(5IK90A-HFT)		1ph 230		0.75
5IK90GU-SF	5IK90GU-SFT	90	3ph 220	50	0.6	1350	700	1250
(5IK90A-SF)	(5IK90A-SFT)			60	0.55	1100	570	1550

Parallel Shaft Gearhead:

Gearhead Type			Gearhead Model		Gear Ratio
Long Life • Low Noise			5GN( )K		3,3.6,5,6,7.5,9, 12.5, 15,18,25,30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200
			5GN10XK ( Decimal Gearhead )

Other Related Products Click here to find what you are looking for:
Company Profile
FAQ Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.

---
