3.15mm E. G Electro Galvanized Steel Wire for Mesh

Product Description

Key attributes Industry-specific attributes Steel Grade steel rod
Type galvanized
Grade Q195
Other attributes Standard AiSi, ASTM, bs, DIN, GB, JIS
Place of Origin Tianjin, China
Alloy Or Not Non-Alloy
Application Netting
Model Number 1006,1008,1010, 1018,Q195,BP05
Brand Name JIN HUAYUAN
type of galvanizing electro galvanizing
size 3.15MM
tensile strength 35-55KGF/MM2
elongation 10%
packing in big coil
color silver bright
product name 3.15MM E.G electro galvanized steel wire for MESH
the shipping port Xingang, China
the minimum order 1 ton
Packaging and delivery Packaging Details small ciol type, spool type,big ciol type,and meet customers special specifications
Port TIANJIN PORT
Supply Ability Supply Ability 2000 Metric Ton/Metric Tons per Month


Overview 3.15MM E.G electro galvanized steel wire for MESH

We have our own Chemical labotory and Mechanical labotory, so all of our raw material, semi-finished product and finished products are tested,valued and approved to the next processing step .

detailed imformation about the quality of our products

1.standards.we meet GB,YB ,ASTM, DIN,EN ,JIS, KS ,IEC standards
2.raw materials: wire rod 1006.1008.1018.Q195.

zinc with 99.995% of purity
3.range of tensil strength:

size of products(mm)	tensil strength(mpa)
0.24-1.60	350-550
1.61-5.00	400-1200

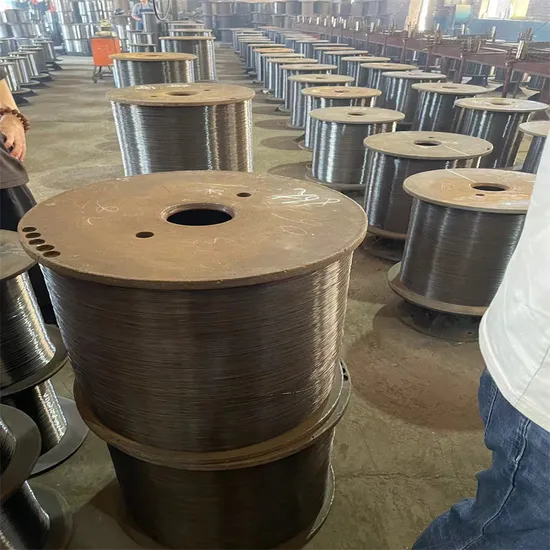

4.packing.

size of products(mm)	size of coil	spool packing	big coil packing(ID/OD MM)
0.23-0.45	8 inches	1-100kg/spool
0.46-0.60	8 ,12 inches	1-100kg/spool
0.61-1.60	12,14,16inches	1-100kg/spool	250-400/400-700
1.61-5.00			450/800

5.zinc coating.

size of products	1. zinc coating ≥	2.zinc coating≥	3. zinc coating≥	4. zinc coating≥	5. zinc coating≥
≤ 0.25		18	15	12	5
0.25-0.40		25	20	12	5
0.40-0.50		25	20	15	8
0.50-0.60		25	20	15	8
0.60-0.80		55	20	15	10
0.80-1.20		60	25	18	10
1.20-1.60		65	25	18	12
1.60-1.80	100	70	40	30	20
1.80-2.20	105	80	50	40	20
2.20-2.50	110	80	55	40	25
2.50-3.00	120	90	70	45	25
3.00-4.00		100	85	60	30
4.00-5.00		110	95	70	40

6.application

out products-the electro galvanized wire are used in a wide range of areas ,such as detonator string,artware,redrawing for rope, woven mesh, toy,etc.





FAQ
JIS/KS/ASTM/BS/GB certificated GI wire galvanized wire price
Q: Manufacturer or Trader?
A: We are manufacturer in wire industry for more than 20 years.
Q: Producing Capacity?
A: The producing capacity totally is 9, 000 tons per month. The producing capacity of this product is 1,500 tons per month.
Q: Main Market?
A: Our main market is foreign customers. 80% of the products are for exporting. The main countries are Japan, South Korea, South Asian area, Europe, America, Canada, and South America etc.
Q: What information should I provide when inquiring?
A: The diameter before pvc coating; after pvc coating, the requirement of the core wire like zinc coating, tensile strength, packing, colour
Q: What is the payment term?
A: T/T; L/C; D/P etc
Q: Free sample available?
A: Yes. Free sample within 2kg is available
Q: Third Party Inspection available?
A: Yes, available. The charges are on the buyer.

---
