US$1.00
2,000-99,999 Meters
Basic Info.
Type
Telecommunication Cable
Material Shape
Round Wire
Conductor Type
Steel Tape
Wire Core Material
Optical Fiber
Certification
CE, ISO, RoHS
Applications
Duct/Non Self-Supporting Aerial Installation
Strength Member
Steel Wire
Loose Tube Filling Material
PBT with Jelly
Double Armour Material
Corrugated Steel and Aluminium Tape
Transport Package
Wooden Drum Iron-Wooden Drum with Fumigated or Not
Production Capacity
35000km/Year
Packaging & Delivery
Package Size
120.00cm * 120.00cm * 120.00cm
Package Gross Weight
600.000kg
Product Description

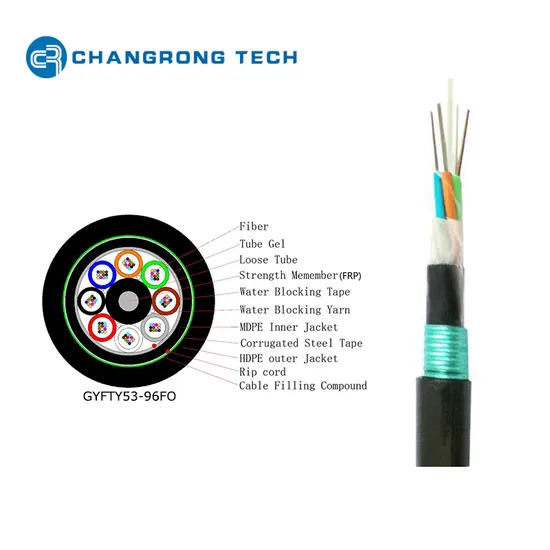

Underground Direct Burial Outdoor Stranded Loose Tube Double Armored GYTA53, GYFTA53 Fiber Optic Cable
Fiber counts: up to 288 core
Fiber type: SM G652D
Double PE jacket
Double Armor: APL + CST
Application: underground direct buried laying
Certificates: ISO9001, ISO14001, ISO45001
Product Parameters
| Fiber Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter(mm) | 13.0 | 13.0 | 13.3 | 13.6 | 14.9 | 16.4 | 17.6 | 17.8 | 19.7 |
| Cable Weight (Kg/km) | 174 | 174 | 178 | 191 | 226 | 263 | 297 | 301 | 366 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
| Tensile Strength(N) | Long/Short Term:1000/3000 |
Crush Resistance(N/100mm) | Long/Short Term:1000/3000 |
| Bending Radius(mm) | Static/Dynamic:12.5D/25D |
| Temperature(ºC) | Storage /Operation:-40ºC~70ºC |
Detailed Photos
- Good mechanical and thermal performance
- Steel wire as the central strength member
- Hydrolysis resistant loose tube
- Tube filling gel ensures critical protection of fiber
- Stranded compact structure eliminating contraction of tubes
- Rugged, durable PE jacket protects against UV radiation, fungus etc.
- Crush resistance and flexibility
- APL moisture barrier
- Corrugated steel tape (CST) enhancing moisture-proof Factory Cable Workshop View
Factory Fiber Workshop View
Production Capacity & Testing
Packaging & Shipping
>>
