Construction Equipment Chassis Giga 10m3 350HP Concrete Construction Truck

Product Description

Construction Equipment Chassis Giga 10m3 350hp Concrete Construction Truck
1.Product Description:

Model		QL5250U1QDZY
Dimensions	Length (mm)	9350
	Width (mm)	2560
	Height (mm)	4050
	Wheel Base (mm)	3985+1370
Weight	Vehicle Curb Weight (kg)	15000
	GVW (kg)	37500
	Max loading capacity (kg)	22500
Performance	Max. Speed (km/h)	95
	Max. Grade Ability (%)	30
	Min. Ground Clearance (mm)	314
Core Equipments Specifications
Engine	Model	6UZ1-TCG51,350HP,EURO-V,9.8L
	Rated Power (HP/KW)	350HP/257KW
	Type	Diesel 6-cylinder in line, 4-stroke, water cooling, with turbo charging and inter-cooling
Transmission	Model	ZF8S2030TO
	Type	Manual
	Speed	8F & 1R
Front Axle	Type	F075
	Load(kg)	7500
Rear Axle	Type	R210
	Load(kg)	21000
	Speed Ratio	5.571
Suspension	Type	Leaf spring
Brake System	Type	Drum
	Service	Dual-circuit air
	Parking	Spring
Standard Equipments Specifications
Driver's Cab.	Type	GIGA Flat roof cab, 2 seats+1 bed,
	Equipment	central lock,electric glass,ABS
	Air conditioner	Air condition
Fuel Tank	Capacity (L)	600, Aluminium Alloy
Wheel&Tire	Type & Size	315/80R22.5 OR 12.00R22.5 for option,11 PCS
Mixer tank	DRUM	Geometric Volume ( m³) 16.77
		Mixing Volume( m³) 10
		Stuffing Ratio(%) 59.63
		Feeding Speed ( m³/min ) ≥3
		Discharging Speed ( m³/min ) ≤2
		Discharge Residue(%) ≤0.2
		Slump Scope(mm) 50-220
		obliquity(°) 12
	HYDRAULIC SYSTEM	MOTOR	EATON
		PUMP	EATON
		REDUCER	EATON
Color	According to client's request

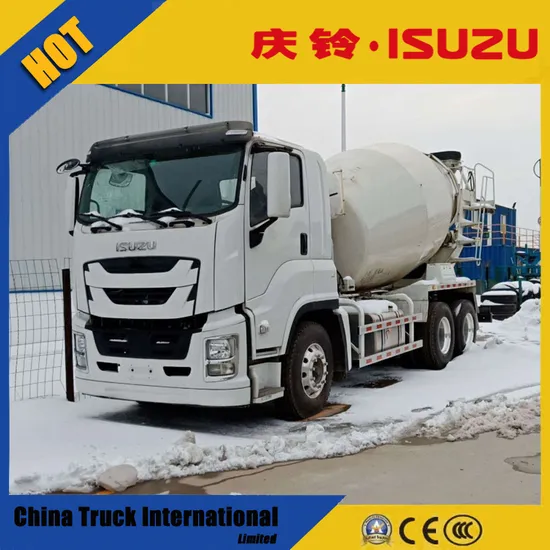

2.More Photos of Mixer Truck:
3.Company information:
China Truck International Limited specialized in all kinds of modified vehicles of truck chassis.With a professional service. We are committed to providing not only high quality special trucks but also spare parts and technical support to customers.
4.FAQ
Q. What is your terms of shipment?
A: Generally, trucks are always by container, bulk cargo vessel, ro-ro etc. spare parts are packed in wooden cases, shipped by
containers.
Q: Do you provide customized service?
A: Yes, we offer customized service as you needs for the performance , included special requirements .
Q. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products before you pay the balance.
Q. What is your terms of delivery?
A: EXW, FOB, CFR, CIF
Q. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and
the quantity of your order.

---
