Industrial Equipment High-Speed Wire Drawing Machine&Swing Pointing Machine 800 I-Turn Take-up Unit

Product Description

Product DescriptionLZ-560 Straight Wire-Drawing Machine +Swing pointing machine

1. Company introduction:
Wuxi Jiexiang Machinery Co., Ltd. was established on February 26, 2010. It is located on the shore of the beautiful Taihu Lake, at the core of Suzhou, Wuxi, and Changzhou, 10 kilometers away from Wuxi Airport, and close to the Beijing-Shanghai Expressway, making transportation very convenient. The company specializes in the production of DL500-1600 inverted drawing machines, LZ-12/560 straight-in drawing machines, LW1-10-560 pulley drawing machines, LT200-560 water tank drawing machines, precision drawing machines specially used in the fastener industry, as well as wire drawing auxiliary machines, pointing machines, elephant trunk type unwinding machines, spooling machines, feeding machines, butt welding machines, etc. Our products have been sold to the United States, Japan, Europe, Vietnam, Philippines, Indonesia, India, Argentina, Egypt, and other countries. In the domestic and foreign metal products industry and fastener industry, we enjoy a good reputation. Product Description
Company produced Straight wire drawing machine is the introduction of foreign advanced technology developed after absorbing a high grade is paricularly suitable for drawng high-strength, high-performance requirements of the drawing machine equipment.Mainly used in steel cord,bead wire,steel wire rope, stainless steel wire, gas shielded weldng wire and other products. The series drawing machine drawing ree diameter350-900mm,the largest wire diameter up φ14mm, the minimum wire diameter can be φ0.7mm.

Model	Drum diameter(mm)	Max Drawing Pass	Max Enter line(mm)	Min Finished product(mm)	Motor Power (KW)	Speed of finished product(m/s)	Noise (dBA)
LZ-450	450	≤14	4.5	0.85	11-22	20	≤82
LZ-560	560		5.5-6.5	1.3	22-45	20	≤82
LZ-600	600		6.5-7.0	1.35	30-55	20	≤82
LZ-800	800		10	2.5	55-90	16	≤83
LZ-1000	1000		14	3.5	90-132	15	≤83

Swing pointing machine is professional wire point for big size for 25mm - 40mm of carbon wires, before go through wire drawing working process. It is an ideal equipment in wire drawing industry.
The rolling point of the bar is finished by the rolling roll swing, and the bar does not need to rotate, so the operation is convenient, the labor intensity of the workers is greatly reduced, and the productivity is increased. This kind of equipment is especially suitable for the rolling point of the thick and medium-sized bar, especially for the rolling point before the inverted drawing.
Specification:

Suitable for wire diameter	φ25-40mm
Power	11kw
Net Weight	1500KGS
Machine size	1200*1000*1700MM

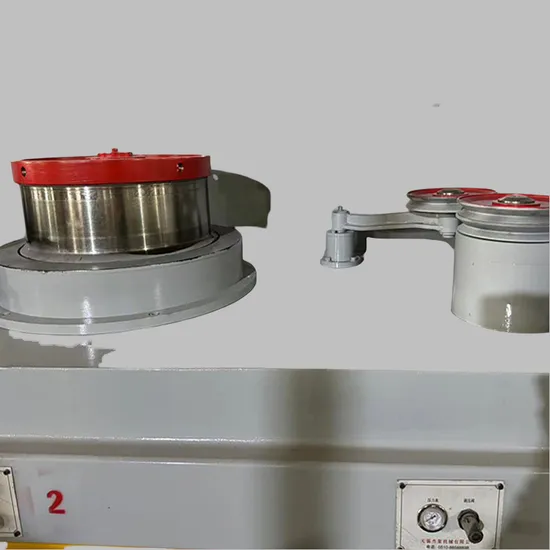

2. Pictures Detailed Photos

3. Contacy ways
Dylan Wang
Marketing Manager


Add: Baojiaqiao,Qingdang Village,Ehe Town,Xishan District,Wuxi City,China
Wuxi Jiexiang Machinery Co.,Ltd

---
