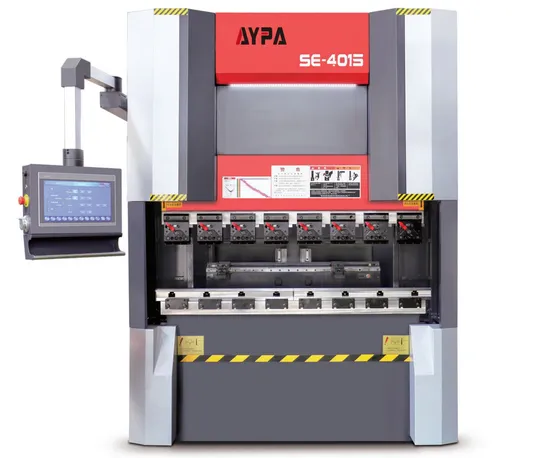

Delem Da66t Electric Hydraulic 40tons 1500mm Panel Cutting Bending CNC Servo Press Brake for Road Sign Maker

Product Description

Delem DA66T Electric Hydraulic 40tons 1500mm Panel Cutting Bending CNC Servo Press Brake Machine for Road Sign Maker
Product Description AYPA is proud to introduce the SE series servo motor panel bending machine.
√ AYPA press brake use unique frame structure- the upper worktable is fixed by the inclined block.
It is much stabler and higher accuracy compared with welding structure.
√ Users can reduce the work intensity and improve efficiency by using pedal switch.
√ AYPA panel bender is equipped with quick clamping die plate.
√ The digital encoder directly controls the height of worktable while working, which can avoid unnecessary empty travel.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display Unique Function
Detailed Photos German HAWE ePrAx R Control Hybrid Oil-electric Drive system
* Fast- increases performance by 10% by reducing cycle time * Efficiency - energy efficiency increased by 50%
* Accuracy - positioning accuracy up to 0.005mm, stroke up to 400mm
* Pressure values of axis Y1/ Y2 are automatically corrected to ensure the bending pressure consistency Compensation Device
* Upper tool is equipped with a quick clamping middle plate with inclined wedge fine adjustment compensation mechanism.
* Bottom end of lower tool is equipped with a mechanical automatic compensation shaft. German ELGO Magnetic Grating Ruler Detection System
* Resolution 5um, oil resistance, earthquake resistance and dust resistance.
* Free to set the zero-pulse position, easy to operate. * Double servo motor drives high-precision heavy-duty screw
* Timely monitor and adjust screw position
* Stable output, high transmission accuracy* High accuracy worktable
* Inclined block fixed* Steel straightedge
* Easily removedand adjustable positioning finger* Quick clamping die plate
* Simply installed and prevent upper die droping Product Parameters

Items	Unit	Specifications
Punch Force	KN	400
Bending Length	MM	1500
Controlling Axes No.	PCS	4+1
Working Stroke	MM	150
Throat Depth	MM	260
Rising Speed	MM/S	50-63
Decreasing Speed	MM/S	52
Bending Speed	MM/S	10-20
Machine Capacity	KVA	18.5
Main Motor Power	KW	7.5
Total Weight	KG	3500

Packaging & Shipping
Company ProfileAYPA is a technological innovation factory with over 20 patents.
* It specializes in producing CNC turret punch machine, bending machine, CNC deburring machine etc.
* Automatic bender can bend complex workpiece at one-time without manual operation.
* Servo press can automatically punch, roll, cut and form.
* Both can work with stack robot to realize highly automated cabinet, kitchenware, fire door, aluminum wall industry.
* We provide customers R&D, production and after-service.
AYPA represents our commitment to lead industry into new era.
FAQ1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.

---
