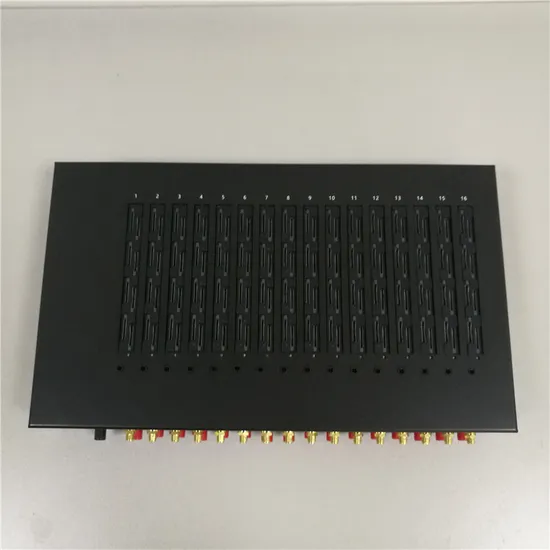

Bulk SMS Sending 128 SIM 16 Port GSM Modem/SMS Modem with SIM Rotation

Product Description

Description:
GSM Modem Pool 16 Ports 128Sims,it has 16 ports, each ports has 8 SIM card slot, totally 16 ports 128 SIMs, USB type is a newly developed GSM/GPRS Modem pool solution which can automatically realize SIM rotation when do bulk SMS sending, it can effectively lower the SIM block by carriers, and improve the SMS sending efficiency. You can preset the SIM rotation rule through hyper terminal of PC by AT command, then the device will automatically do SIM rotation according to the rule.
Application:
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business company)
Government agencies or large township
Specifications:
1, GSM Modem Pool 16 ports 128 SIMs slot;
2, GSM 900/1800/850/1900Mhz Quad band (Quectel M35 module employed);
3, Automatically SIM rotation;
4, IMEI Changeable through Hyper terminal of PC;
5, USB interface
6, AT Command
Main Features:
1, Can Support 16 channels simultaneously;
2, Can insert 128 SIM cards (each port 8 SIM cards)
3, Connect with the Computer through USB line for USB type.
4, Each channel with separate power switch.
5, Each channel can be demolished separately.
6, Comply with GSM Phase 2 standard.
7, USB Interface
8, Can send and receive SMS in bulk
9, Industrial Chassis, Elegant Appearance design.
10, support Windows XP, Windows7, Linux, Unix OS etc.
Basic Features
1, Asynchronous, transparent or non-transparent, to a maximum 14400 bits/s,
2, Baud rate: 115200 bits/s
3, Automatic baud rate: from 2400 to 19200 bits/s
4, GPRS compatible
5, SMA antenna interface
6, SIM card Outlet
7, Built-in Ac-adapter: 12V 3A
8, USB ports support
9, AT command control (GSM 07.07 and 07.05)
Hardware Features:
Meet the ETSI GSM 2 + standards
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W@1800 MHz)
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Device Size: standard GSM Modem Pool chassis
Weight: 4KG/unit
Package

16 port gsm modem pool/bulk sms modem	1PC/CTN
Antenna	16pcs
Power adapter cable	1pc
G.W./CTN	5KG

Installation:
Step 1: Connect the device through USB Data cable.
Step 2: Insert SIM card into the SIM card slot, connect antenna, power on the device.
Setp 3: Install the Driver
Setp 4: Install the SMS caster (Or other SMS software), open the software then it is ready to send SMS now.
Function Setting:
GSM Modem Pool 16 ports 128 SIMs provides you to do the function setting through Hyper terminal.

Modem Help List:

IMEI Change:
Compatiable with SMS Caster and others SMS Software:
SIM Card Slot(16 ports 128 SIM)

---
