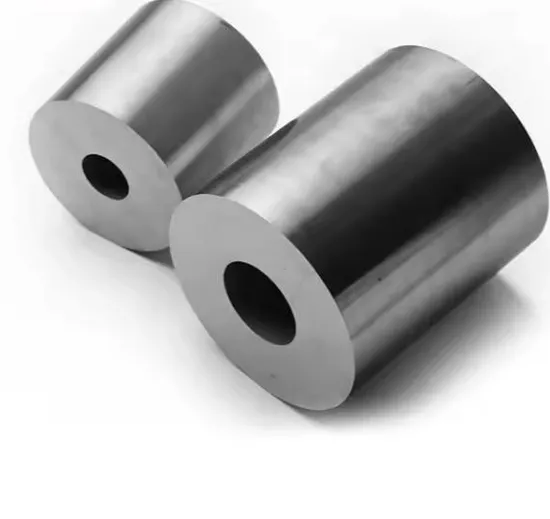

Carbide Moulds for Making Screws

Product Description

The cemented carbide cold heading die is required to have good impact toughness, fracture toughness, fatigue strength, bending strength, and wear resistance under the wear-resistant working condition of impact or strong impact.
Tungsten Carbide Cold Heading Dies Characteristics:
1. High wear resistance. Tungsten carbide cold heading dies material high wear resistance, tensile modulus can be guaranteed long-term work in any degree of deformation, ensuring standard size unchanged.
2. Excellent in polishing. Carbide has a good polishing, can be processed into the die hole mirror light, ensuring high quality standard surface.
3. Adhesion to metal is small. In the tungsten carbide cold heading process, ferrous metal material adhesion small carbide tooling materials, ensuring a high tungsten carbide cold heading die life.
4. The friction coefficient and energy consumption is small.
5. High thermal conductivity. Since the thermal conductivity of the tungsten carbide die is high, heat generated during the cold forging can quickly conducted away to improve the durability of the mold.
6. Good corrosion resistance.
Grade List

YG3	K01	97	3	14.90	91.00	1180	Suitable for finishing of cast iron,non-ferrous metals,alloys and non-metallic materials,and semi-finishing vehicles for intermittent cutting.
YG6	K10	94	6	15.10	92.00	1420	Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron.
YG6X	K20	94	6	15.10	91.00	1600	Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
YG8	K20-K30	92	8	14.90	90.00	1600	Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials, roughing of sections and rough cutting.
YG10	K40	90	10	14.70	89.00	1900	Suitable for the production of drawing dies, wear parts and stamping parts and cores for hard alloy automatic presses.
YG10X	K40	89	10	14.70	89.50	2200	Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
YG15	K30	85	15	14.70	87.00	2100	Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses.
YG20	K30	80	20	13.70	85.50	2500	Stamping die, stamping watch parts, musical instrument spring piece.
YG20C	K40	80	20	13.70	82.00	2200	punching battery case, toothpaste skin mold, small size steel ball, screw, nut stamping die, hot rolling twist drill bit plate.
YG30	G60	70	30	12.80	82.00	2750	Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.

Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
Other Carbide Dies

Types of machines	Moulds Diameter	Moulds Length
0#(DH-5)	20mm	35mm
1/8(DH-10)	30mm	45mm
3/16(DH-15)	34.5mm	67.5mm
1/4(DH-20)	42mm	85mm
5/16(DH-25)	54mm	100mm

Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.
Other Carbide Dies
Types of machines
Moulds Diameter
Moulds Length
0#(DH-5)
20mm
35mm
1/8(DH-10)
30mm
45mm
3/16(DH-15)
34.5mm
67.5mm
1/4(DH-20)
42mm
85mm
5/16(DH-25)
54mm
100mm
Advantages
With nearly 300 years combined experience, the carbide tooling department at JETVISION is second to none. Our knowledge of the industry and attention to detail translates into the highest quality carbide products available.
JETVISION stocks a wide range of carbide grades and sizes which enables us to provide fast delivery of your tooling. Our expertise and equipment allow us to meet nearly any size requirement from .200" to 4.75". With a full line of D60 and D70 carbide along with limited sizes of D50 and D40, JETVISON often has the needed material in stock, allowing us to start the job process immediately.
Most toolmakers do not have the time or facilities to run evaluations and cutting parameter tests for each job to determine the best material for that particular job. Our industry is defined by shorter lead times and precision machining. JETVISION has the expertise to aid you in choosing the right material and coating to suit your needs. You can trust over 450 years of cumulative experience to answer your questions and guide you through the process from start to finish. JETVISION currently occupies a 40,000 square foot facility in Rockford, IL. We are outfitted with state-of-the-art machine and computer technology. We are committed to quality and continuous improvement and strive to exceed customer expectations at every turn.
BENEFITS OF TUNGSTEN CARBIDE IN TOOLING
Strength - Tungsten carbide has very high strength for a material and is extremely hard and rigid. Compressive strength is higher than almost all melted, cast, forged metals and alloys.
Rigidity - Tungsten carbide compositions range from (2) to (3) times as rigid as steel and (4) to (6) times as rigid as cast iron and brass. Young's Modulus is up to 94,800,000 psi.
Heat Resistance - Tungsten Carbide is highly resistance to deformation and deflection and is very valuable in applications where a combination of minimum deflection and good ultimate strength is the first consideration.
Impact Resistant - For such a hard material with very high rigidity, the impact resistance is high.
Heat and oxidation resistance - Tungsten-base carbides perform well up to about 1000°F in oxidizing atmospheres and to 1500°F in non-oxidizing atmospheres
Low temperature resistance (cryogenic properties) - Tungsten carbide retains toughness and impact strength in the cryogenic temperature ranges. (-453°F.)
Thermal Conductivity - Tungsten carbide is in the range of twice that of tool steel and carbon steel.
Electrical Conductivity - Tungsten carbide is in the range equal to that of tool steel and carbon steel.
Specified Heat - Tungsten carbide ranges from about 50% to 70% as high as carbon steel.
Weight - The specific gravity of tungsten carbide is from 1-1/2 to 2 times that of carbon steel.
Hot Hardness - When temperature increases to 1400°F, tungsten carbide retains much of its room temperature hardness. At 1400°F, some grades equal the hardness of steels at room temperature.
Tolerances - Many surfaces or even complete parts can be used the way they come from the furnace, "as sintered", such as mining or drilling compacts. In those parts requiring precision ground accuracy, such as stamping dies, close-tolerance preforms are provided for grinding or EDM.
Methods of Fastening - Tungsten carbide can be fastened to other materials by brazing, epoxy cementing or mechanical means. Tungsten carbide's low thermal expansion rate must be carefully considered when preforms are provided for grinding or EDM.
Coefficient of Friction - Tungsten carbide compositions exhibit low dry coefficient of friction values as compared to steels.
Galling - Tungsten carbide compositions have exceptional resistance to galling and welding at the surface.
Corrosion-Wear Resistance - Specific grades are available with corrosion resistance approaching that of noble metals. Conventional grades have sufficient resistance to corrosion-wear conditions for many applications.
Wear-Resistance - Tungsten carbide wears up to 100 times longer than steel in conditions including abrasion, erosion and galling. Wear-resistance of tungsten carbide is better than that of wear-resistance tool steels.
Surface Finishes - Finish of an as-sintered part will be about 50 micro inches. Surface, cylindrical or internal grinding with diamond wheel will produce 18 micro inches or better and can produce as low as 4 to 8 micro inches. Diamond lapping and honing can produce 2 micro inches and with polishing as low as 1/2 micro inch.
Dimensional Stability - Tungsten carbide undergoes no phase changes during heating and cooling and retains its stability indefinitely. No heat treating is required.
Why Choose US?
Quick Response: Your inquiry will be replied within 24 hours.
High Quality: Strict control in produce for high quality as a manufacture and Well-trained workers and more than 20 years experience.
Competitive Price: Directly from factory to save your money.
Short Lead Tim: Being efficient:3-5 days for samples and in stock and 20-30 days for large orders.
Flexibility: Small orders are acceptable for quick delivery and to help you reduce stock cost.
Packing: Suitable packing according to customer's requirements
OEM: Custom fabrication according to your drawings ,samples or designs.( Including client's own brand )

---
