| US$1,650.00-7,350.00 | 1 Piece (MOQ) |

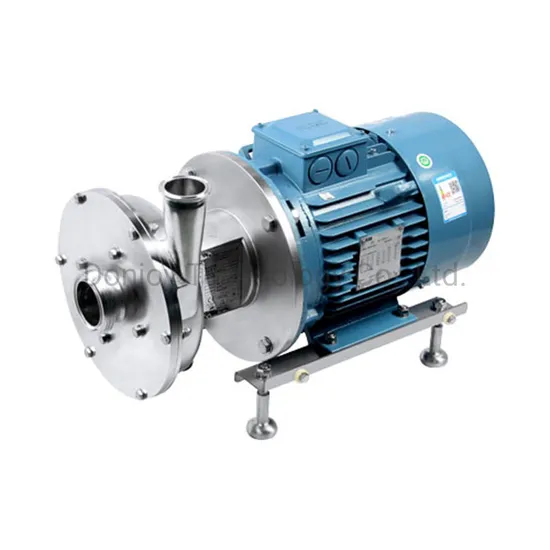

| Item Name: | Single stage Homogeneous Emulsifying Pump |
| Material: | SS316L/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval), or FPM (Viton) |
| Max. Flow: | 40 m3/h |
| Max. Power: | 45KW |
| Media refinement: | ≤ 60 GRIT (≈300 μm) |
| Mechanical seal: | SIC/C/EPDM(Standard) |
| Temperature: | -20~140 degree centigrade |
| Surface treatment: | ≤RA 0.8μm, ≤RA 0.6μm, ≤RA 0.4μm |
| Mechanical seal: | Single mechanical seal & double mechanical seal |
| Motor: | ABB/domestic |
| Motor Frequency: | 50HZ, 60HZ |
| Available connection: | Clamped, Threaded, Flanged, Aseptic flanged |
| Available standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operated: | By electic motor |
| Low discharge : | Diaphragm valve/ball valve/butterfly valve |
| Certification: | 3-A-02-11(N.O.1579); MD/06/42-EC(N.O.70521616101-00); FDA 177.2600; USP CLASS-II; EG/VO1935/2004; |
| Application range: | Food, beverage, pharmacy, health protection, fine chemistry, coating, pesticide, daily chemical and papermaking etc. |
| Packaging Details: | By plywood case |
