Ufm Food Chemical Pharmacy Trough Ribbon Blender

Product Description

Description>>>

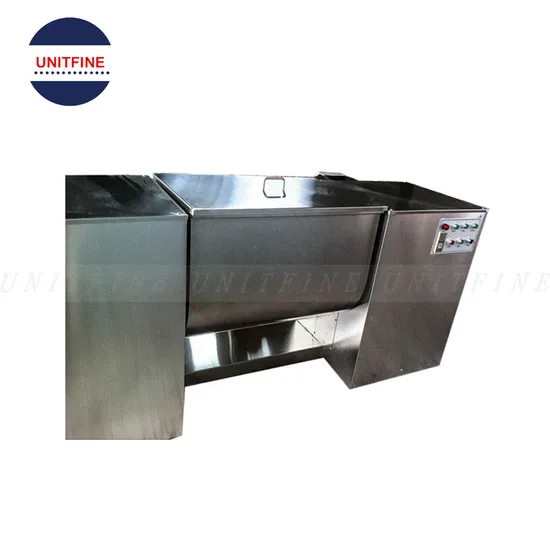

CH series trough mixer is designed thoroughly for mixing powders and damp materials, which can make main and supplementary materials mixed uniformly. It can be divided into five models: CH10, CH20 , CH50, CH100, CH150, CH200, CH300, CH400, CH500, CH600.This pharmaceutical mixing machine is designed with the employment of stainless steel. Besides, both sides of the mixer shaft are installed with a sealing device to prevent materials from leaking. Currently, trough mixer is very popular among pharmacy, chemical, and food industries.
Working principle
S type agitating paddle rotated, through mechanical driving, which pushes the material to turn repeatedly and mixes uniformly. Operate with electrical control, it can set mixing time to realize automatic stop and electric discharge upon expiration, thus improving the mix quality of each batch of material and realizing the high homogeneous mixing.
Technical advantages 1. Robust, simple, and compact design requires minimum maintenance;
2. Made by SUS304 or SUS 316 and mirror polished to meet GMP pharmaceutic sanitary standards;
3. Special driveshaft sealing design can 100% make sure contamination free of the product;
4. The gap between the sigma blade and the mixing vessel inner wall is less than 3mm;
5. High efficient mixing without dead corner;
6. The heating jacket can be equipped for steam, hot water or hot oil;
Models Available>>>
Single spindle

Model	CH-30	CH-50	CH-100	CH-150	CH-200	CH-300	CH-400	CH-500	CH-600
S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle
Working volume	20	30	60	90	140	180	250	300	280
Sped of agitation speed	24	24	24	24	24	24	24	24	24
Turning angle(r)	<105	<105	<105	<105	<105	<105	<105	<105	<105
Agitation motor(kw)	0.75	1.5	2.2	3	4	5.5	7.5	11	15
Discharging motor(kw)	0.12	0.55	0.55	0.75	0.75	1.1	1.5	1.5
Overall dimensions (L×W×H)(mm)	1065×380 ×520	1265×430 ×720	1580×500 ×830	1685×600 ×1000	1850×600 ×1000	2160×70 0×1200	2280×700 ×1250	2450×700 ×1250	2500×900 ×1350
Weight(kg)	150	200	300	650	720	750	780	820	850

dual spindle

Model	CH-100	CH-200	CH-400
S Type of paddle	S Type of paddle	S Type of paddle	S Type of paddle
Working volume	60	140	250
Sped of agitation speed	24	24	24
Turning angle(r)	<105	<105	<105
Agitation motor(kw)	4	5.5	11
Discharging motor(kw)	0.55	0.75	1.1
Overall dimensions (L×W×H) (mm)	1580×600×830	1850×800×980	2350×900×1390
Weight(kg)	380	800	950

FAQ Q: What information should be provided in order to get a proposal or quotation? A: Our Sigma/Z blade mixer can be customized. To work out a detailed proposal or quotation, we have to know the following information: 1) What products will be mixed 2) Bulk density and particle size of your product 3) Mixing volume 4) Construction material: SUS304 or SUS316L 5) If the heating jacket is needed Q: How the machine will be delivered? A: The mixer is packed in a plywood box for shipping

---
