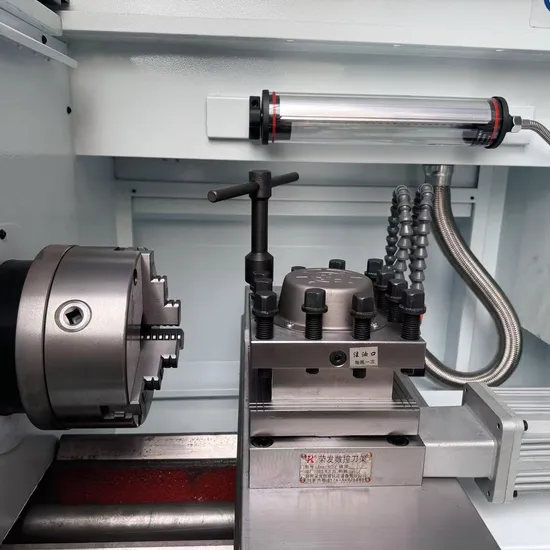

0640 CNC Lathe with Flat Machine Height Precision CNC Instrument Lathe

Product Description

Product Parameters
The CK0640 digital control lathe has several significant advantages compared to traditional CNC lathes:
Precision Machining, Flange Specialized: CK0640 CNC lathe, designed specifically for precision instrument flange machining, ensuring high accuracy and stability.
Automated Efficiency Enhancement: Equipped with an automatic feeding system, enabling efficient continuous processing and injecting new momentum into production efficiency.
Versatile Applications: Suitable for various precision instrument flange machining tasks, including threading, hole drilling, and more, meeting diverse production needs.
Overall, the CK0640 digital control lathe offers clear advantages over traditional CNC lathes in terms of precision, efficiency, automation, adaptability, and data-driven management. It is a key equipment widely applied in modern manufacturing industries.

ITEM	0640
CNC system	GSK
Swing over bed	270mm
Max. rotation diameter of the support plate	120mm
X-axis Max. strok	560mm
Z-axis Max. strok	200mm
X-axis rapid traverse speed	6000mm/min
Z-axis rapid traverse speed	6000mm/min
Spindle through-hole	48mm
Spindle head specifications/taper	A2-5
Main motor power	4kw
Spindle speed	50-3000rpm
Tool holder form	Four-position tool turret
Tool handle specification	20*20mm
Quasi compact mode	Pneumatic
X-directiong motor torque	4 Nm
Z-directiong motor torque	4 Nm
X/Z motor connection method	Direct connection
Repetitive positioning accuracy	0.001mm
External dimensions of machine tools	1700*1200*1650mm
Net weight of machine tool	900kg

---
