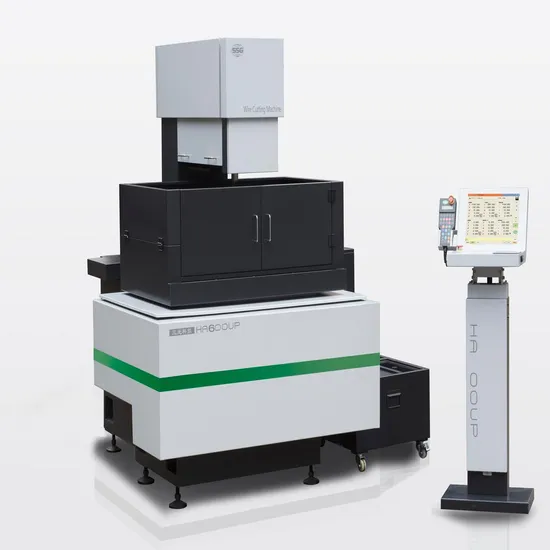

X Y Servo Motor Spark Erosion Wire Cutting Machine EDM

Product Description

Product Features
1.Multi-cutting function
2.Best roughness Ra<0.6um
3.Max.cutting speed hit 300mm2/min
4.With advanced and particular pluse power, gets lower loss.The diameter of wire wore 0.005mm in 200000mm2 cutting.
5.Professional high-quality industry computer and international brand parts makes the products good performance.
6.High-strength resin castings ensure the machine body having enough rigidity and strength
7.Handy control
Product Parameters

Worktable Travel	600x450 mm
Wire Electrode Diameter	Ф0.10-0.22 mm
Machine Weight	2350 kg
Mahine Layout Size	2100x1850x2300mm
Max. Cutting Thickness	500 mm
Max.Cutting Tapper	±6°/50 mm
Max. Workpiece Weight	800 kg
Max. Workpiece Size	1400x850x500mm
Max. Workpiece Current	>12 A
Best Surface Roughness	<0.6um
Max. Workpiece Current	>300 mm'/min
Power Supply	3-380V+5% 50±1Hz
Environment Temperatuer	10-35°C
Consumed Power	1.2 KVA
Language(Optional)	Chinese,English, Korea, Japanese

Detailed Photos
On the basis of retaining the original advantages of high precision, high reliability and easy operation, HAUP series has comprehensively upgraded the appearance and protection of the whole machine.
HAUP series control more simple, more fashionable appearance, equipped with high-performance numerical control system, the performance indicators on the basis of the original to obtain a qualitative leap.
Protect Environment
Frame-shaped water-retaining structure prevents leakage of the cutting fluid in the machining area. The brand-new elevating manager make it more convenient to set work-pieces and greatly saving the space.
Comprehensively meet the latest national standard for medium-speed wire cutting EDM ( JB/T11999.1-2014 )
Forward-looking design concept and wide use of low-speed wire cutting technologies ensureunprecedented machining performance and realize machining reliability and consistency on thebasis of high efficiency.

Nonelectrolyte power supply technology
The titanium alloy minimizes thecontamination on the surface of materials through discharge controlnduring machining with nonelectrolytic power supply, preventing oxidation andiscoloration on the surface
High speed nonelectrolyte power to inhibit electrolytic corrosion, to prevent the formation of "softening layer" and improve the surface quality
Maching Features

Checking Instrument and equipment
Company Profile
Suzhou Sanguang Science&Technology Co., Ltd. is a research and development, manufacturing, production, sales, service as one of the high-tech enterprises, is a leading enterprise specializing in the production of CNC electrical discharge machine tools . The company is located in the scenic Suzhou National High-tech Industrial Development Zone, headquartered in No. 145 Songshan Road, Suzhou New District.
Company product line "SANGUANG" brand includes Brass wire cut EDM, Molybdenum wire multi-cutting EDM, Die-Sinker EDM and Small hole drill EDM. Taking advantage of the brand advantage of "Sanguang Brand", it integrates the characteristics of international mainstream machine tools in the design and manufacture, relies on stable quality, reliable performance and humanized operation mode, which is favored by various users . In addition to having a stable market in China, the products are also exported to the United States, Germany, Turkey, Sweden, Japan, South Korea, Australia, Poland, Hesigo, Saudi Arabia. Iran, Brazil, South Africa, Colombia, Malaysia, Thailand, India, Vietnam ect.
Company History
1966 :Suzhou No.3 Optical Instrument Factory
1968 :Started to research Molybdenum wirecut EDM machines with photoelectric tracing
1969 : Developed and produced GDX-1model
1982 : Developed and produced SSX-3molybdenum wire cut EDM machine based onSingle-board machine controller
1984 :DK7725D machine won the NationalSliver Medal
1989 : The company entered into partnershipwith COSMOS international MachineryCo.,Ltd Hongkong to set up a joint venture called Suzhou Sanguang Electric MachineryCo.,Ltd
1994 : Sodick Co.Ltd Japan entered intopartnership and the name of the companywas changed into Suzhou Sodick-SanguangElectric Machinery Co.,Ltd
1995 : Started to research and producedDK7632 Brass wire cut EDM machine
2008:Relocated at No.145 SongshanRoad Suzhou, China, plant area 38060m?
2010 :Multi-cutting molybdenum wire cutmachine, HA series were released
2012 :The latest Brass wire cut machine, LA series were released
2014 :Became a public company ,stockcode :430414
2016 : Developed and produced HB400,whichwon IF award of 2017
2018 :Released the latest Linear Motor machine HB400
Certifications

---
