Thermal Imaging Telescope Th35V2 Thermal Imaging Sight for Outdoor Hunting

Product Description

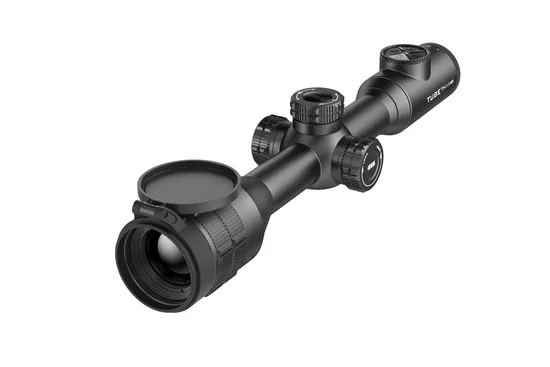

Thermal Imaging Riflescope Tube Series TH35V2 The TH35V2 expands on the success of the TH35 with the addition of the optional LRF and built-in mic function, maintaining the excellent features such as 12um 640x512 sensor, 50mm optics and 2560x2560 1.03" AMOLED display.
The new TH35V2 is designed to present unprecedented comfort, super clarity and absolute precision.
Meet with Tube Series
Ultra-Precise Boosted by Optional LRF(upgraded)
TH35V2/TH50V2 is able to provide the distance measurement on the screen when the LRF is connected to the device through Bluetooth, earning you more chances to win in every shooting.

Built-in Microphone (Upgraded)
TH35V2/TH50V2 is equipped with a MIC function, therefore customers can record the voice when recording.


Traditional Day Scope Appearance
The traditional style housing allows for mounting with standard 30mm rings like a typical day scope.

12um 640*512 High Capacity Sensor
Being the top-end thermal scope of Tube Series, TH35V2/TH50V2 is equipped with the industry leading InfiRay 12 um 640x512 sensor with advanced image processing algorithm.

1.03" AMOLED Display with 2560x2560 Resolution
TH35V2/TH50V2 adopts particular 2560x2560 1.03" AMOLED display to provide finest observing experience with excellent optical parameter, no need to stare into the screen like you used to, therefore the visual fatigue caused by the long-time observing can be prevented.

Ultra-clear Mode
With Untra-clear mode, TH50V2 can still provide a clear and delicate imaging even in bad weather conditions such as heavy fog and rain.
More Accurate Zeroing
TH50V2(TH35V2) is able to reach 1.2cm(1.71cm) per unit at 100m when zeroing. Each scale unit is smaller. Therefore, the zeroing can be more accurate.
Smooth Magnification
TH35V2/TH50V2 is able to magnify the imaging smoothly without flicker and stutter bringing users comfort when observing.

2600m Detection Range
Combining the extraordinary sensor and the powerful 50mm optics, TH50V2 can achieve the detection range up to 2600m.

Model	TH35 V2
Detector Specifications
Type	Uncooled Vox
Resolution, pixels	640 × 512
Pixel Size, μm	12
NETD, mk	≤ 25
Frame Rate, Hz	50
Optical Specifications
Objective Lens, mm	35
Field of View (H×V), º	12.5 × 10.0
Linear Field of View (H×V), m at 100m	21.9×17.5
Optical Magnification, ×	2.5 ~ 10.0
Digital Zoom, ×	1 ~ 4
Eye Relief, mm	50
Exit pupil Diameter, mm	6
Diopter, D	-5 ~ +3.5
Detection Range, m	1800
(Target Size: 1.7m×0.5m, P(n)=99%)
Display Specifications
Type	AMOLED
Resolution	2560 × 2560 (1.03")
Battery Power Supply
Battery	Built-in battery / 6600mAh + replaceable 18500 battery / 3.7V
Max. Operating Time (22ºC), h*	8.5
External Power Supply	5V (Type C)
Functions
Wi-Fi / APP	Support (InfiRay outdoor)
Photo / Video Recorder	Support
MIC	Support
Bluetooth	Support
Operational Characteristics
Memory Capacity,GB	32
IP rating	IP67
Operating Temperature, °C	-20 ~ +50
Max. recoil power on rifled weapon (Eo), Joules	6000
Compatible mounts	Standard 30 mm rings
Weight (without the 18500 battery), g	< 915
Dimension, mm	360 × 85 × 75

---
