Basic Info.
Application
Rice, Wheat, Soybean
Portable Harvester Type
Self-Propelled
Certification
ISO9001:2008, CE
Application Field
Agriculture
Transport Package
Nude Packing for CBU Shipping by Container
Specification
4700x2400x2750 mm
Production Capacity
30000 Sets / Year
Product Description

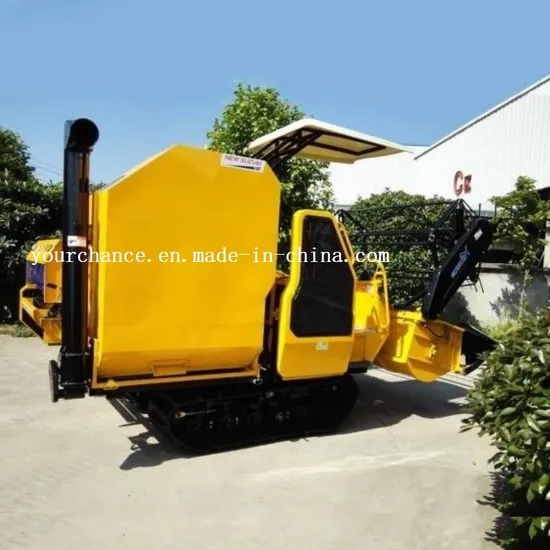

Iran hot selling 4LZ-5.0D 100HP 2.2m width 500mm track Double threshing drums Combine harvester
4LZ-5.0D harvester Main specification and Technical parameters :
| Model | 4LZ-5.0D |
| Type | Self-propelled Full-feed Track type |
| Structure feature | Double threshing drums |
| Cutting Width | 2200 mm |
| Overall Dimensions (L xW xH) | 4700×2400×2750 mm |
| Weight | 2900 kg |
| Engine Model | 498BZT Diesel Engine |
| Rated Power | 100HP/73.5kw |
| Rubber Track | 500x48x90 |
| Transmission | HST (45L) |
| Min. Ground Clearance | 300 mm |
| Cutter auger | 370 mm |
| Track distance | 70mm (height between truck and chassis) |
| Feeding capacity | 2.3kg/s- 8.28 t/h |
| Working Efficiency | 0.65 ~ 0.95 Ha./H |
| Gearbox type | 95 type big gearbox |
| Type of Lifting | Hydraulic |
| Lifting of Reel | Hydraulic |
| Steering | Hydraulic |
| Conveyor | Chain rack tooth type |
| Threshing Cylinder | Tangential Flow + Axial Flow, Dual Spike-tooth type |
| Cleaning | Fan (front blowing + rear suction)+Sieving+re-thresher |
| Unloading unit | Grain Tank & Automatic Hydraulic vertical Discharge pipe |
| Grain Tank | 1.3 CBM/ (600-750 kg) |
| Option configurations | Bag type grain discharging or Rotary type High discharge pipe |
| Load Quantity | 1 set/20ft container, 3 sets/40HC |
Advance technology and manufacturing equipments for High quality harvester:
High quality Harvester have ISO,CE, PVOC COC,etc certificates :
Harvester Loading container for CBU shipping:
Best price will be quoted for you as soon as receive your Requirement !
>>
