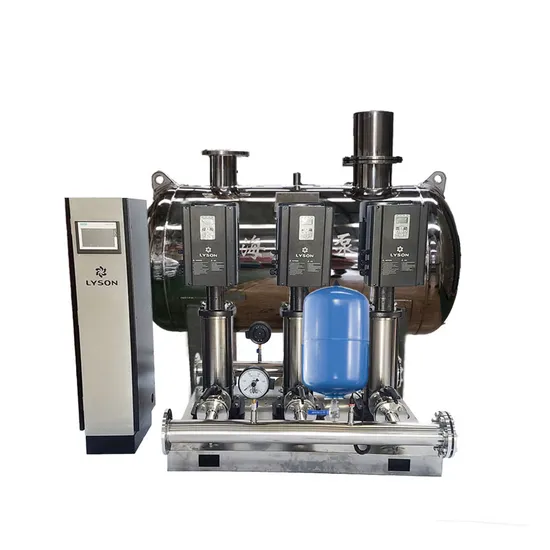

Equipment for Pressurized Water Supply of Pressure-Free Tube Network

US$199.00

1-4 Sets

US$195.00

5+ Sets

Basic Info.

Model NO.

LZW

Max.Head

>150m

Max.Capacity

>400 L/min

Driving Type

Motor

Impeller Number

Multistage Pump

Working Pressure

High Pressure Pump

Influent Type of Impeller

Clear Water

Position of Pump Shaft

Vertical Pump

Pump Casing Combined

Verticaljoint Surface Pump

Mounting Height

Suction Centrifugal

Impeller

Closed

Usage

Pump, Pumps, Condensate Pump, Slurry Pump, Circulating Pump

Type

Lzw

Color

Silver

Material

Cast Iron

Motor

100% Cooper Wire

Pressure

High Pressure

Theory

Centrifugal

Transport Package

Standard Export Packing or According to Customers′

Specification

ISO9001/CE

Trademark

LYSON or OEM

Origin

Shanghai, China

HS Code

8413709990

Production Capacity

5000/Month

Product Description

Product Description Products Name:
Automatic Constant Pressure Variable Flow Water Water Pump Water Supply Equipment
Conditions of use: Suitable for conveying the temperature under 60 celsius water and similar to that of liquid water, pump system working pressure of up to 11 bar.
The scope of performance parameter: This series a total of 6 species, 50kinds of specifications and its
performance parameters range:
1 flow Q= 18~108 m3/h
2. Lift H= 30 ~ 160 m
3. Speed n=1450/2900 r/mi8
4. Power P=1.1~ 274kW

fault phenomenon	failure cause	elimination methods
The manual is normal Automatic transmission failure	1.No power supply or one or two phase power supply is needed	Check all phases of power supply and restore power supply
	Water level is too low	Put water in the sink
	The motor burned	Repair or replace the motor
	1.Line is loose	Check wiring and tighten connectors
	2.Frequency converter malfunction	Check the fault content, check the cause according to the frequency converter manual, and restart after reset.Or disconnect the inverter power supply for a few seconds, the inverter fault reset before starting.
	3The frequency converter is damaged	Repair or replace
	4.Pressure switch damage	Repair or replace
	5The pressure transmitter is damaged	Repair or replace
	6.Switch failure	Repair or replace
Pump non - suction pressure gauge pointer to beat violently	Insufficient water supply for perfusion, air leakage at the connection between pipeline and instrument	Check pipeline and bottom valve, refill water diversion. Tighten air leakage
The pump consumes too much power	Too much flow, impeller wear	Check whether the pump shaft is bent, replace the impeller, close the outlet valve to reduce the flow
