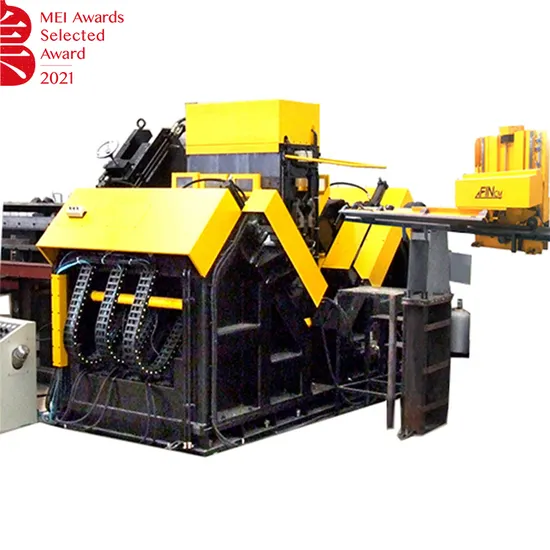

FINCM CNC Power Transmission Line Angle Steel High Speed Drilling Machine

Product Description

BL2532 FINCM Power Transmission Line Automatic CNC High-Speed Steel Angle Drillling Machine 140mm×140mm×10mm~250mm×250mm×32mm
Product Description
This machine is composed of transverse conveyor, rotating loading system, infeed conveyor, CNC infeed carriage, CNC driling unit, marking unit, unloading conveyor, as well as hydraulic, electrical and pneumatic systems letc.

Technical Specification:

Angle Size	140×140×10mm~ 250×250×32mm
Range of Stadia	50mm~ 220mm(stepless)
The Quantity of Punching Row Per Side	Arbitrary
Quantity of Drilling Spindle Per Side	3
Range of Drilling Diameter(high-speed steel twist drill)	φ17.5mm~ φ40mm
Motor Power of Drilling Spindle	2×5.5KW
Rotation Speed of Spindle	180r/min~ 560r/min(stepless adjustment)
Feeding Speed	20 ~ 280mm/min
Quantity of CNC Axis	3
Max.length of Workpiece	12m
Angle Feeding Speed	40m/min
Quantity of Character Group	1

1.The finished angle conveyor is rotated to one side by pneumatic power, the max length of finished angle is12m.
2.There are four sets of transverse conveyor, infeeding automatically and intermittently.
3.Type of programming: keyboard input, USB interface input, floppy disc input.
Relateed Products

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.

---
