Rubber Raw Material Machine Manufacturer Rubber Cutter/Rubber Bale Splitter

Product Description

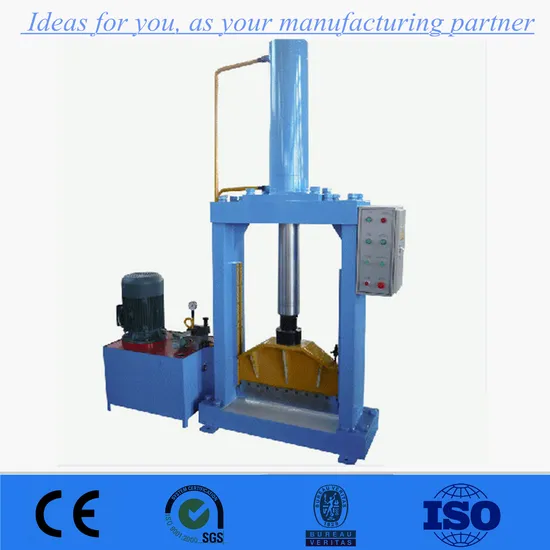

Rubber raw material machine manufacturer rubber cutter/rubber bale splitter
rubber bale splitter Usage:
This rubber bale splitter is mainly used to cut the natural rubber,synthetic rubber and other plastic materials,especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber

Features of rubber bale splitter
1.This rubber bale splitter mainly consists of cutting knife,frame,cylinder,base,auxiliary table,sydraulic system and electric system.
2.The nylon plate is installed on the base under the cutting knife for protecting the edge of the cutting knife.
3.When cutting the raw rubber,put the raw rubber under the cutting knife,the press the start button,the knife can cut the rubber.
5.Two limited switches are installed on the frame to control the reversal valve to change the movement direction of the knife,at the same time,it protects the cover of the cylinder.

rubber bale splitter Technical Information:

Type	XQL-8	XQL-16
Width (mm)	660	1000
Stroke (mm)	680	680
Diameter of the piston (mm)	150	150
Time Taken by the Stroke (second)	16~25	10~16
Power (KW)	5.5	5.5
Overall Dimension (LxWxH)	1900×720×2580	2240×720×2580
Weight (kg)	1500	2000

Company Introduction Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
Our Service
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

---
