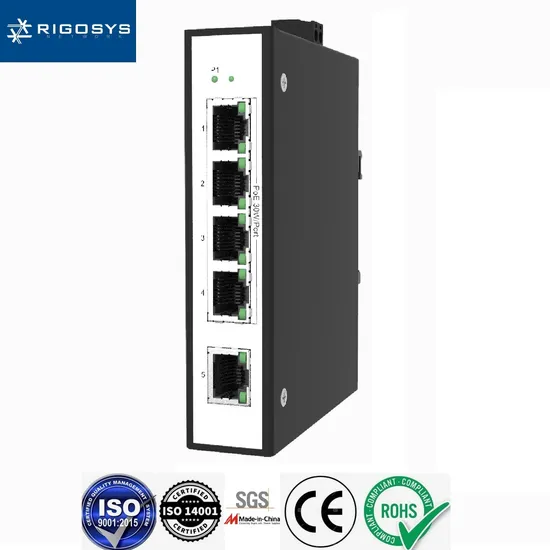

5-Port 100M POE+ Industrial-Grade DIN-Rail Unmanaged fiber/optical Access Ethernet Network Switch _OEM/ODM

Product Description

Product Features

Supports up to 5*100M ports, all electrical ports, 4 of which support POE/POE+ Industrial IP40 protection grade Default guide rail, optional wall mounting

Switch Parameters

Network Interface
Port Description	Supports up to 5 100M ports, all electrical ports, 4 of which support POE/POE+
Power Supply
Power input	Single 48VDC (48~57 VDC )
Power consumption	Without POE power consumption is less than 5W POE supports a maximum power of 1-20W .
Protect	Support overload protection and reverse protection
POE Features
POE power supply standard	Support IEEE802.3af/at standard POE power supply
Single port output power	15/30W, IEEE802.3af/at
Power supply pin	1/2(+), 3/6(-); 4-core power supply
Technology
Ethernet Specifications	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX and 100Base-FX
MAC address table	1k
Priority Queue	4
Jumbo Frames	1518 bytes
Processing	Store and Forward
Switch Features	Switching delay time : <10μs Switch backplane bandwidth : 1.2Gbps
Mechanical Properties
Dimensions (W x H x D)	27.5 x 122 x 95mm
Protection level	IP40
Installation	Default guide rail, optional wall mounting
Weight (g)	≤1KG
Environment
Storage temperature	-40~85 ºC
Operating temperature	-40~75 ºC
Working humidity	5%~95% no condensation
Certification
EMI	FCC Part 15, CISPR (EN55022) class A
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS) EN61000-4-4 (EFT) EN61000-4-5 (Surge) EN61000-4-6 (CS)	Contact discharge 6 kV, air discharge 8 Kv 10 V/m, 80MHz~ 1 GHz 1 kV for signal terminal, 2 kV for power input terminal Power input: 2kV (line/ground), 1kV (line/line) 10 V, 150 kHz~80 MHz
Shock	IEC60068-2-27
Fall	IEC60068-2-32
Shock	IEC60068-2-6
Security Level	EN60950-1
Warranty	5 years

Switch Size

Product Model

Model	Description
RIS3005P-5T-4P-L5	Industrial-grade DIN-rail unmanaged switch, 5 10/100Base-TX Ethernet ports, 4 of which support POE/POE+ , wide temperature range -40~+75ºC, redundant input, DC 48~57 V single power supply

Certifications
Production Process
FAQ:
Q: Are you manufacturer or trading company?
A: Manufacturer, and industry network total solution provider.
Q: Do you accept ODM/OEM?
A: Yes. We provide customized expert service.
Q: What is your minimum order quantity?
A: MOQ is 1 unit.
Q: What's the payment type?
A: T/T.
Q: How about shipping time?
A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.
Q: How about after-sales service?
A: 7/24 hours online and respond to user's field device problems in time.
Q: How about the warranty?
A: 5 years.

OEM/ODM or more requirements, welcome to contact us.

---
