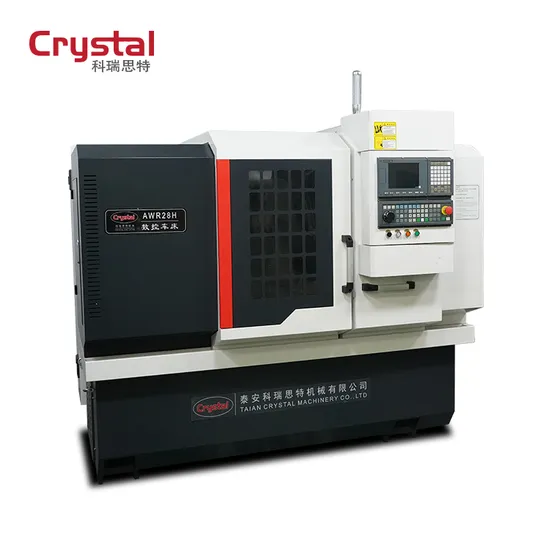

Awr28h Best Sale Model CNC Alloy Wheel Repair Lathe Machine

Product Description

NOTE: The currency exchange rate fluctuates greatly, please consult customer service for the best price.
AWR28H best-selling cnc wheel lathe equipment for wheel polishing
Wheel Repair Lathe Advantages
1. Cuts wheel up to 28''.
2. 17 inch interface touchscreen.
3. With CE, SGS, ISO, BV certificates.
4. Automatic ruby probe system.
5. Self-developed optimization software.
6. Free Training video and manual.
7. 7x24 hours technology support.
8. 2 USB interface.
9. High efficiency and economic.
10. Two-year warranty.
11. Free factory hand-to-hand training.
12. Agencies in UK, Germany, Poland, Netherlands, Australia etc.
Alloy Wheel Repair Lathe Specifications

ITEMS	AWR28H
Max. swing over bed (mm) (inch)	Φ770 (30')
Max. Size of alloy wheel (mm) (inch)	Φ720 (28')
Adjustable stroke of carrier in X direction (mm)	100
Cross slide travel (mm)	390
Width of the rail (mm)	300
Length of the rail (mm)	1300
Size of the three-jaw chuck (inch)	12'
Range of spindle speed (rpm)	50~2000
Spindle speed control	Automatic
Spindle bore (mm)	Φ82
Taper of spindle bore	1:20(Φ90)
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8m/min, (X) cross 6m/min
Motor power	7.5KW
Machine base (cast iron base)	Whole
Machine size (L×W×H) (mm³)	2140 ×1600×1860
Net weight	2200kgs

Standard configuration

wireless key&mouse 1 set	diamond cutter 1 set inner
diamond cutter 1 set outer	special ordered soft jaws 1 set
high precision prob system 1 set	4 station tool which can adjust X stroke
automatic lubrication system	cooling system(standard)
full cover safety door	tool case
training videos

1.Q:The machine can repair wheel edge?
A:Yes, that's no problem to repair wheel edge.
2.Q:The machine is easy to learn?
A:Yes, it is very easy to learn. The detailed manual and training video will be supplied with machine together .
3.Q:Do I need any special software for my PC?
A:We will provide optimization software (It is specifically aimed at wheel repair and
we have independent intellectual property rights).
4.Q:What kind of tool that wheel repair machine use?
A: It is diamond cutting tools.
5.Q:How many time it takes to repair a wheel ?
A:For same model wheels, the first one needs about 10 minutes, because
probing wheel curve will take some time. After first one, the curve will be saved, so
when you repair other wheels as same model, it just takes about 3 minutes.
6.Q:Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
7.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.

---
