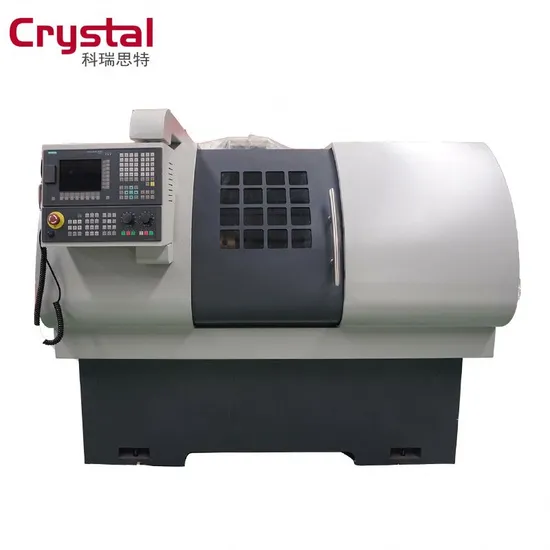

China Factory High Quality Automatic CNC Lathe Machine Price

Product Description

The currency exchange rate fluctuates greatly, please consult customer service for the best price.
A. Main features
1. The base of the machine is made of cast iron which is heavy enough and of good rigidity and stability.

2. independent spindle, step-less speed regulation, with lower noise and high standard machining
accuracy, is an environmental- protective machine.

3. The spindle is the high rotate speed and sophisticated bearing, with smooth surface. The extra
size diameter of the spindle bore isφ60mm while the diameter of chuck is φ200mm.

4. High cost performance: the 36's performance with the 32's performance.
B. Standard Configuration and Specifications
1. GSK-928TDL

2. Three-jaw Chuck

3. 4-station Electric Turret

4. Manual Tail-stock

5. Automatic Lubrication System; Cooling System; Lighting System

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ150mm
Max. length of work piece	450mm/700mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT6
Stations of tool carrier	4/6/8 or gang type tool carrier
Max size of tool post	20mm×20mm
Min. setting unit of motor	(Z) long 0.001mm, (X) cross 0.001mm
Moving speed of post	(Z) long 8 m/min, (X) cross 4 m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	100mm
Motor power	4KW
Packing size(length ×width ×height)	1600/1850*100*550mm
Net weight	1300/1450kg

---
